Kexin Electronics 2SD1421
NPN Transistors
| Part No. | 2SD1421 |
|---|---|
| Datasheet | 2SD1421 Download |
| Manufacturer | Kexin Electronics |
| Description | NPN Transistors |
| Buy | Stock & Price |

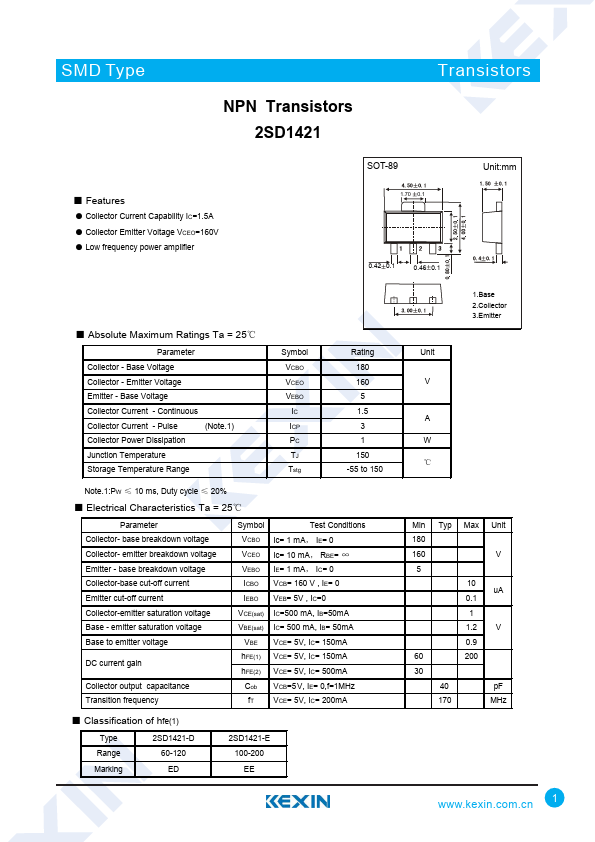

FEATURES
● Collector Current Capability IC=1.5A● Collector Emitter Voltage VCEO=160V
● Low frequency power amplifier 1.70 0.1 0.42 0.1 0.46 0.1
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse (Note.1) Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating 180 160 5 1.5 3 1 150 -55 to 150 Note.1:PW ≤ 10 ms, Duty cycle ≤ 20%●

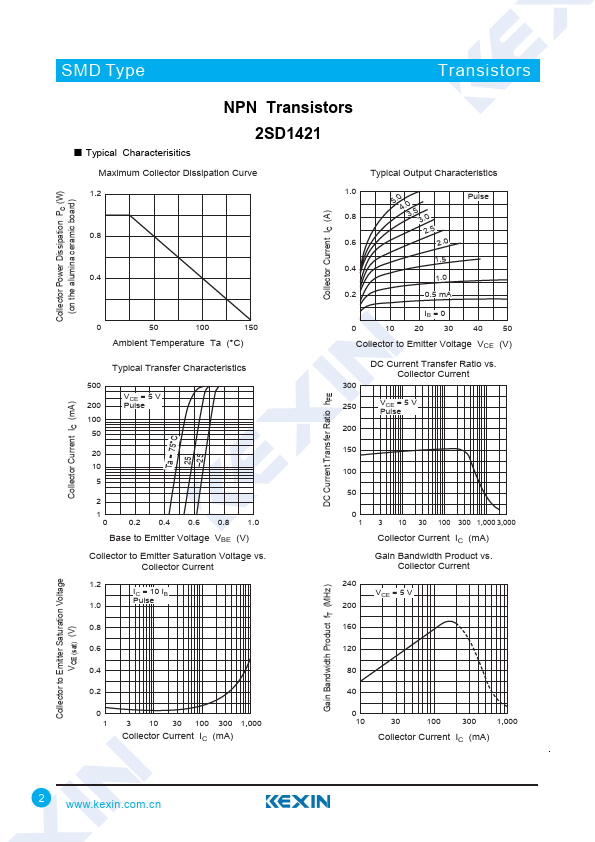

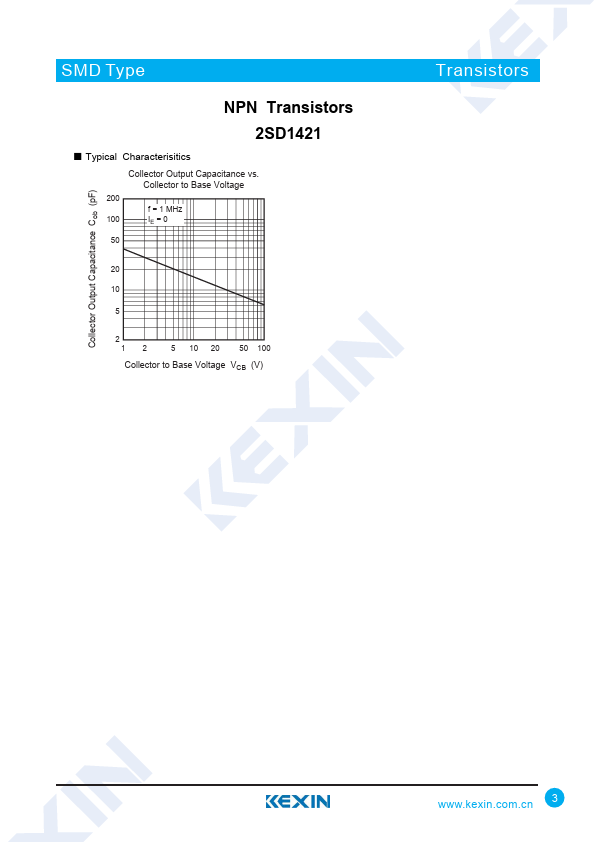

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage Base to emitter voltage DC current gain Collector output capacitance Transition frequency Symbol Test Conditions VCBO Ic= 1 mA， IE= 0 VCEO Ic= 10 mA， RBE= ∞ VEBO IE= 1 mA， IC= 0 ICBO VCB= 160 V , IE...
