2SD1421 Datasheet PDF

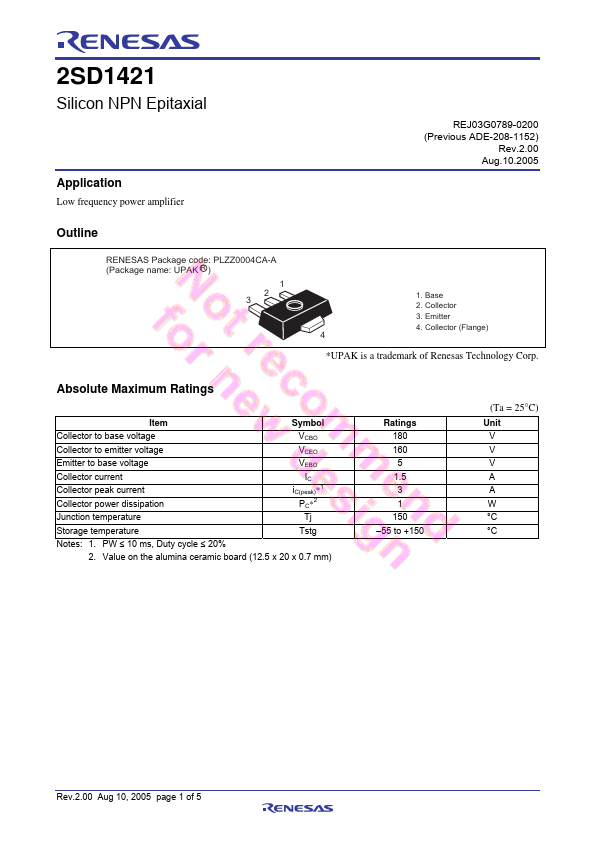

ABSOLUTE MAXIMUM RATINGS

Item Symbol Collector to base voltage VCBO Collector to emitter voltage VCEO Emitter to base voltage VEBO Collector current Collector peak current Collector power dissipation IC iC(peak)*1 PC*2 Junction temperature Tj Storage temperature Tstg Notes: 1. PW ≤ 10 ms, Duty cycle ≤ 20% 2. Value on the alumina ceramic board (12.5 x 20 x 0.7 mm) Ratings 180 160 5 1.5 3 1 150 –55 to +150 (Ta = 25°C) Unit V V V A A W °C °C Rev.2.00 Aug 10, 2005 page 1 of 5 2SD1421

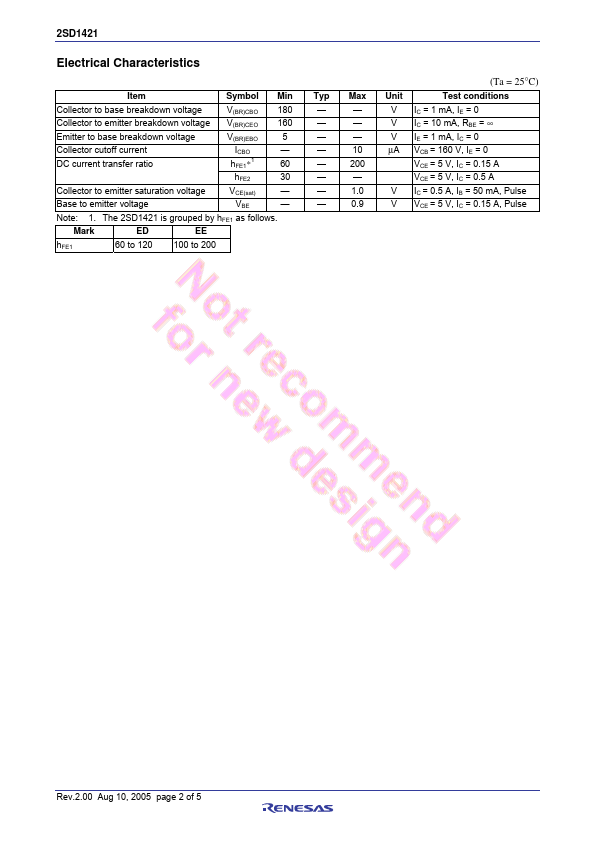

ELECTRICAL CHARACTERISTICS

(Ta = 25°C) Item Symbol Min Typ Max Unit Test conditions Collector to base breakdown voltage V(BR)CBO 180 — — V IC = 1 mA, IE = 0 Collector to emitter breakdown voltage V(BR)CEO 160 — — V IC = 10 mA, RBE = ∞ Emitter to base breakdown voltage V(BR)EBO 5 — — V IE = 1 mA, IC = 0 Collector cutoff current DC current transfer ratio ICBO — — 10 µA VCB = 160 V, IE = 0 hFE1*1 60 — 200 VCE = 5 V, IC = 0.15 A hFE2 30 — — VCE = 5 V, IC = 0.5 A Collector to emitter saturation voltage VCE(sat) — — 1.0 V IC = 0.5 A, IB = 50 mA, Pulse Base to emitter voltage VBE — — 0.9 V VCE = 5 V, IC = 0.15 A, Pulse Note: 1.
