2SJ0582

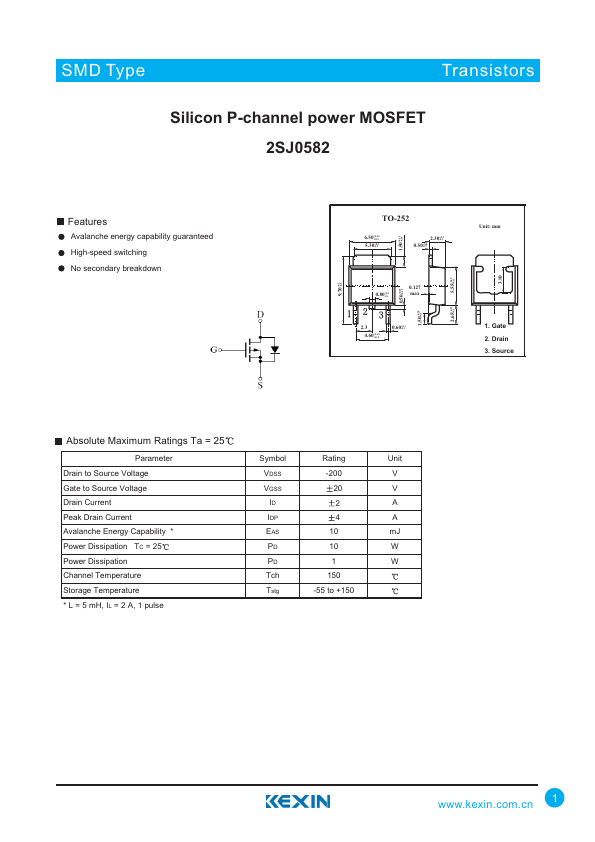

2SJ0582 is Silicon P-channel power MOSFET manufactured by Kexin Semiconductor.
Features
Avalanche energy capability guaranteed High-speed switching No secondary breakdown
+0.2 9.70 -0.2
TO-252
6.50+0.15 -0.15
5.30+0.2 -0.2
2.30+0.1 -0.1
0.50+0.8 -0.7
Unit: mm
+0.15 1.50 -0.15
+0.15 5.55 -0.15
0.80+0.1 -0.1
0.127 max
2.3 4.60+0.15
-0.15
0.60+0.1 -0.1
+0.15 0.50 -0.15
+0.28 1.50 -0.1
+0.25 2.65 -0.1
1. Gate 2. Drain 3. Source

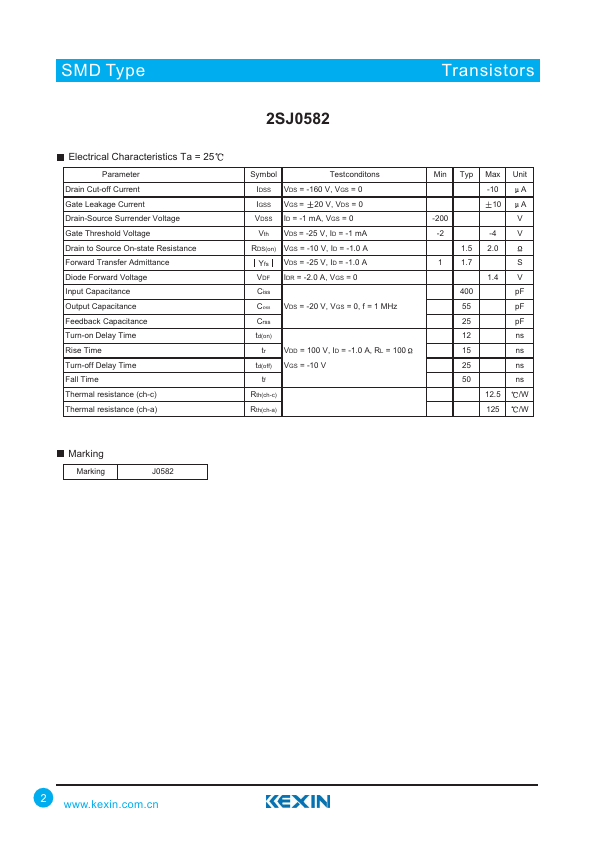

Absolute Maximum Ratings Ta = 25
Parameter Drain to Source Voltage Gate to Source Voltage Drain Current Peak Drain Current Avalanche Energy Capability
- Power Dissipation TC = 25 Power Dissipation Channel Temperature Storage Temperature
- L = 5 m H, IL = 2 A, 1 pulse
Symbol
Rating
Unit
VDSS
-200
VGSS
10 m...
