2SJ0582 Datasheet | VBsemi

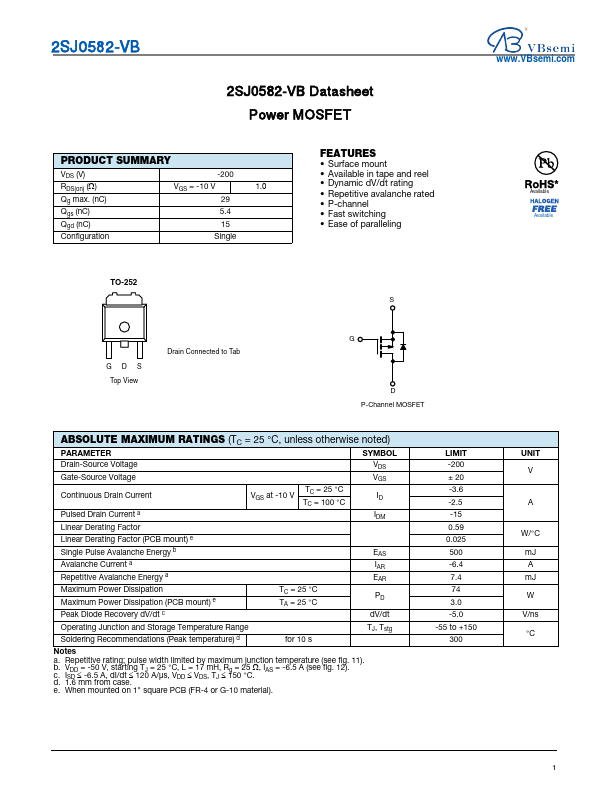

FEATURES - Surface mount - Available in tape and reel - Dynamic d V/dt rating - Repetitive avalanche rated - P-channel - Fast switching - Ease of paralleling .VBsemi. Available Available TO-252 S GDS Top View Drain Connected to Tab D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current a Linear Derating Factor VGS at -10 V TC = 25 °C TC = 100 °C Linear Derating Factor (PCB mount) e Single Pulse Avalanche Energy b Avalanche Current a Repetitive Avalanche Energy a Maximum Power Dissipation Maximum Power Dissipation (PCB mount) e Peak Diode Recovery d V/dt c TC = 25 °C TA = 25 °C EAS IAR EAR PD d V/dt Operating Junction and Storage Temperature Range Soldering Remendations (Peak temperature) d for 10 s TJ, Tstg Notes a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11). b. VDD = -50 V, starting TJ = 25 °C, L = 17 m H, Rg = 25 , IAS = -6.5 A (see fig. 12). c. ISD  -6.5 A, d I/dt  120 A/μs, VDD  VDS, TJ  150 °C. d. 1.6 mm from case. e. When mounted on 1" square PCB (FR-4 or G-10 material). LIMIT -200 ± 20 -3.6 -2.5 -15 0.59 0.025 500 -6.4 7.4 74 3.0 -5.0 -55 to +150 300 UNIT V W/°C m J A m J W V/ns...
