2SJ166 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-50V.
  • ID =-0.1 A (VGS =-10V).
  • RDS(ON) ＜ 50Ω (VGS =-4V).
  • Comp;ementary to 2SK1132 P-Channel MOSFET 2SJ166 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 0-0.1 +0.1 0.68 -0.1 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ166 P-Channel MOSFET NEC
2SJ166 60V P-Channel MOSFET VBsemi
2SJ160 P-Channel MOSFET Hitachi Semiconductor
2SJ160 Silicon P-Channel MOSFET Renesas
2SJ161 P-Channel MOSFET Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ130S P-Channel MOSFET
2SJ179 P-Channel MOSFET
2SJ181S P-Channel MOSFET
2SJ185 P-Channel MOSFET
2SJ197 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

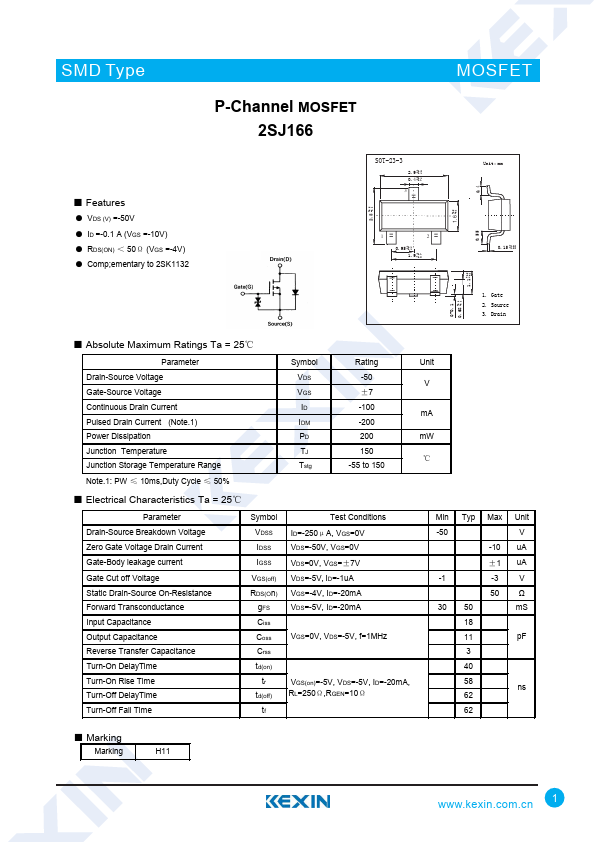

SMD Type MOSFET ■ Features ● VDS (V) =-50V ● ID =-0.1 A (VGS =-10V) ● RDS(ON) ＜ 50Ω (VGS =-4V) ● Comp;ementary to 2SK1132 P-Channel MOSFET 2SJ166 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 0-0.1 +0.1 0.68 -0.1 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Junction Storage Temperature Range Note.
