2SJ244 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-12V.
  • ID =-2 A D.
  • RDS(ON) ＜ 0.8Ω (VGS =-4V) G.
  • RDS(ON) ＜ 0.9Ω (VGS =-2.5V) S 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Junction Storage Temperature Range Symbol Rating Unit VDS -12 V VGS ±7 ID -2 A IDM -4 PD 1 W TJ 150 ℃ Tstg -55 to 150 Note.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ244 P-Channel MOSFET Hitachi Semiconductor
2SJ244 P-Channel MOSFET Renesas
2SJ240 Field Effect Transistor Toshiba
2SJ243 P-Channel MOSFET NEC
2SJ245 Silicon P-Channel MOS FET Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ203 P-Channel MOSFET
2SJ204 P-Channel MOSFET
2SJ205 P-Channel MOSFET
2SJ206 P-Channel MOSFET
2SJ207 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

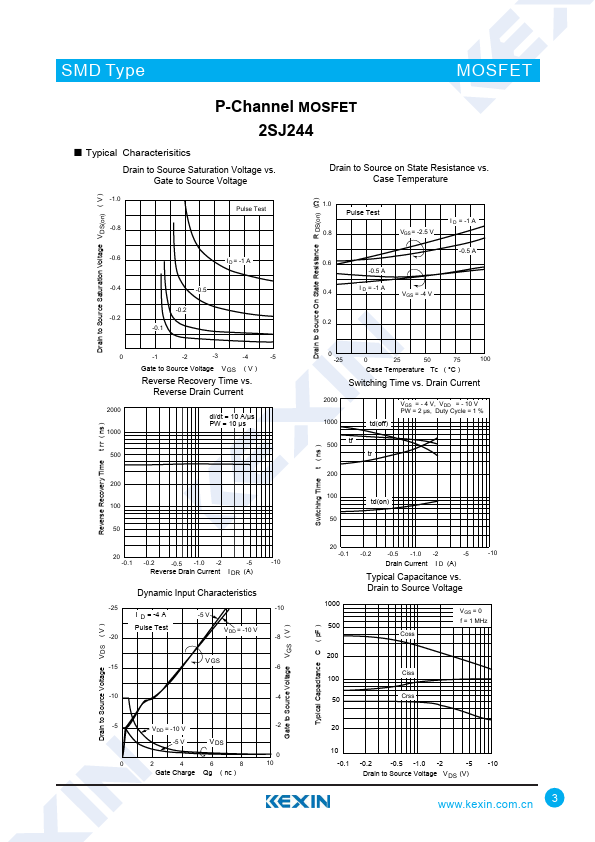

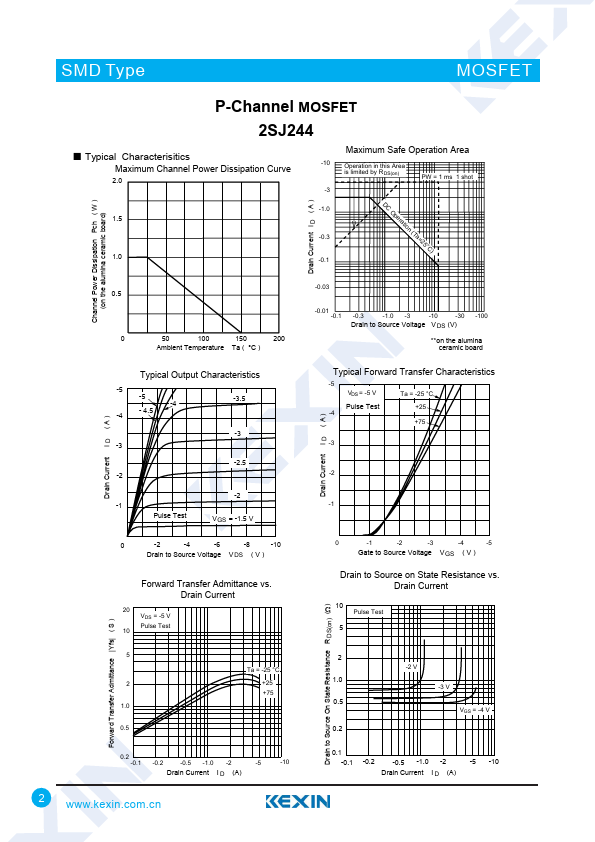

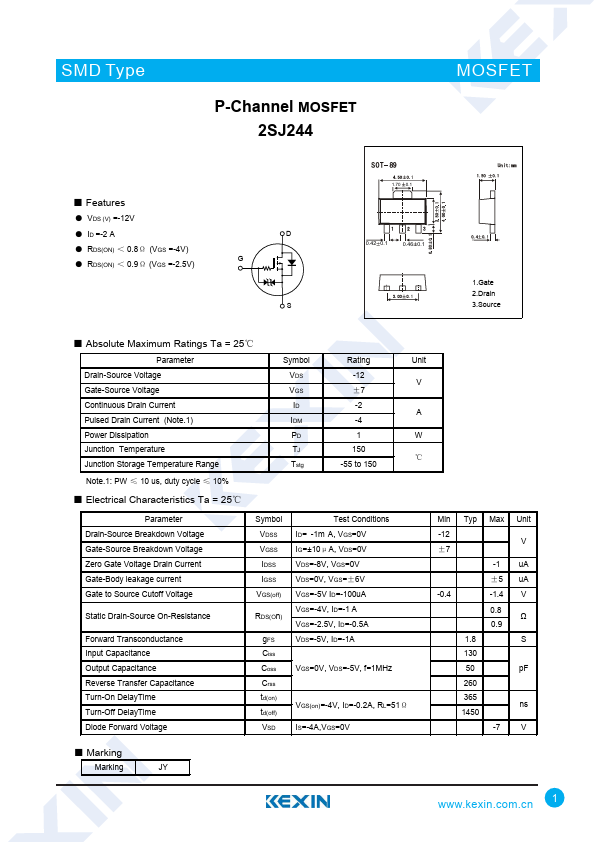

SMD Type P-Channel MOSFET 2SJ244 MOSFET ■ Features ● VDS (V) =-12V ● ID =-2 A D ● RDS(ON) ＜ 0.8Ω (VGS =-4V) G ● RDS(ON) ＜ 0.9Ω (VGS =-2.5V) S 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Junction Storage Temperature Range Symbol Rating Unit VDS -12 V VGS ±7 ID -2 A IDM -4 PD 1 W TJ 150 ℃ Tstg -55 to 150 Note.
