2SJ319S - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-200V.
  • ID =-3 A (VGS =-10V).
  • RDS(ON) ＜ 2.3Ω (VGS =-10V).
  • High speed switching.
  • Low drive current P-Channel MOSFET 2SJ319S TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 +0 1.50 .15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 +0 9.70 .2 -0.2 D G S + 0.50 0.15 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source 4 Drain.
  • Absolute Maximum Ratings Ta.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ319S P-Channel MOSFET Hitachi Semiconductor
2SJ319 P-Channel MOSFET Hitachi Semiconductor
2SJ319L P-Channel MOSFET Hitachi Semiconductor
2SJ312 P-Channel MOSFET Toshiba Semiconductor
2SJ313 P-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ3001 P-Channel MOSFET
2SJ3001DS P-Channel Enhancement MOSFET
2SJ302 Mos Field Effect Power Transistor
2SJ302-ZJ P-Channel MOSFET
2SJ3021 P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

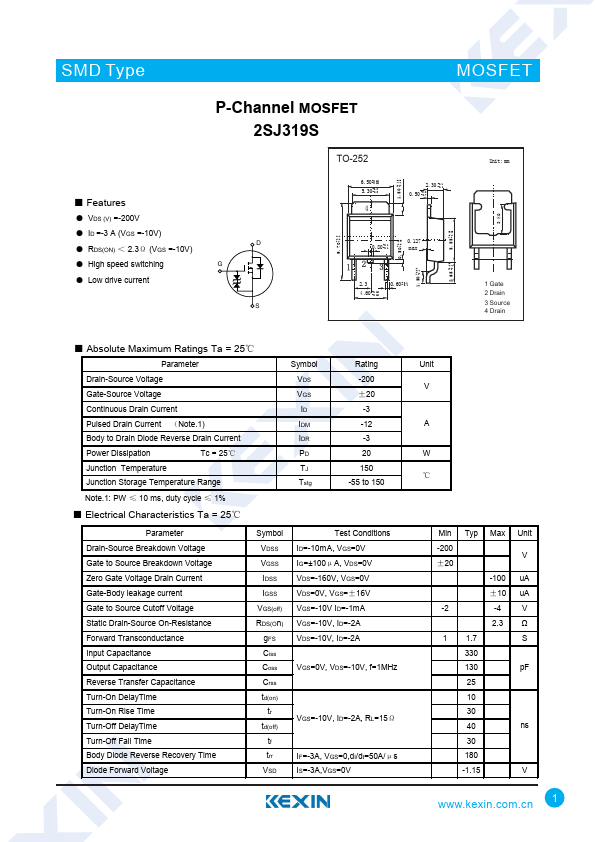

SMD Type MOSFET ■ Features ● VDS (V) =-200V ● ID =-3 A (VGS =-10V) ● RDS(ON) ＜ 2.3Ω (VGS =-10V) ● High speed switching ● Low drive current P-Channel MOSFET 2SJ319S TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 +0 1.50 .15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 +0 9.70 .2 -0.2 D G S + 0.50 0.15 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source 4 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current （Note.1) Body to Drain Diode Reverse Drain Current Power Dissipation Tc = 25℃ Junction Temperature Junction Storage Temperature Range Note.
