2SJ602-ZJ - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-20A.
  • RDS(ON) ＜ 73m Ω (VGS =-10V).
  • RDS(ON) ＜ 107mΩ (VGS =-4V).

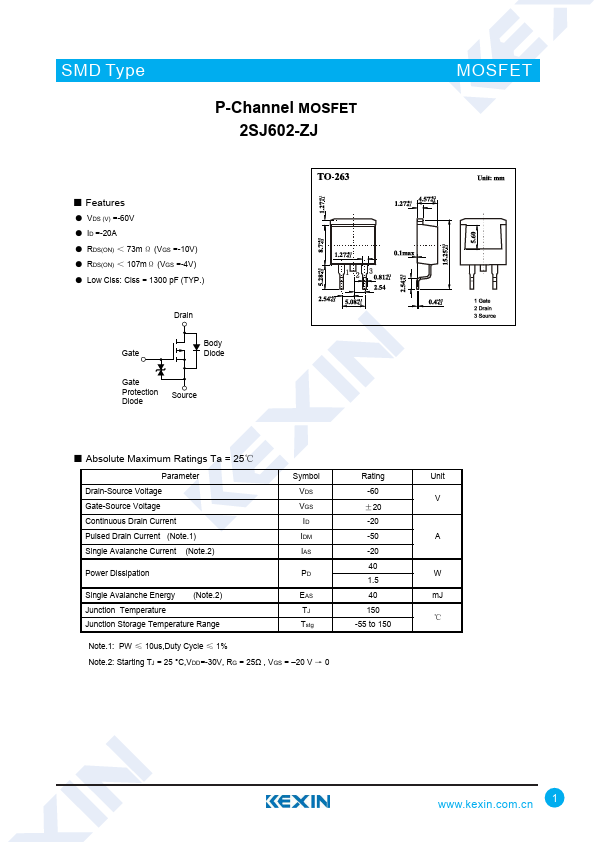

  • Low Ciss: Ciss = 1300 pF (TYP. ) Drain Gate Body Diode Gate Protection Diode Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Single Avalanche Current (Note.2) Power Dissipation Single Avalanche Energy (Note.2) Junction Temperature Junction Storage Temperature Range Symbol Rati.
