2SJ602-VB

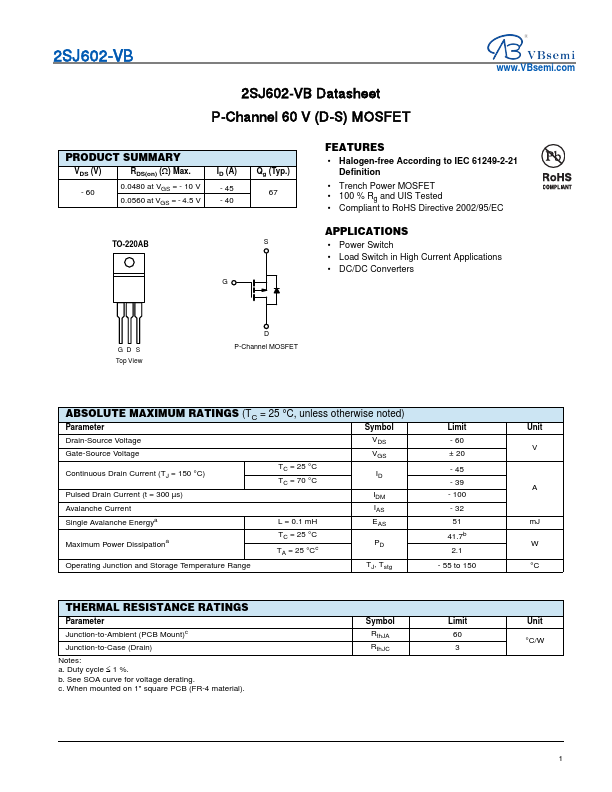

2SJ602-VB Datasheet P-Channel 60 V (D-S) MOSFET
.VBsemi.
PRODUCT SUMMARY
VDS (V)
RDS(on) () Max.
- 60
0.0480 at VGS =
- 10 V
0.0560 at VGS =
- 4.5 V
ID (A)
- 45
- 40
Qg (Typ.) 67
TO-220AB
Features
- Halogen-free According to IEC 61249-2-21
Definition
- Trench Power MOSFET
- 100 % Rg and UIS Tested
- pliant to RoHS Directive 2002/95/EC
APPLICATIONS
- Power Switch
- Load Switch in High Current Applications
- DC/DC Converters
GD S Top View
D P-Channel...
