2SJ604-ZJ Datasheet P-channel MOSFET

Manufacturer: Kexin Semiconductor

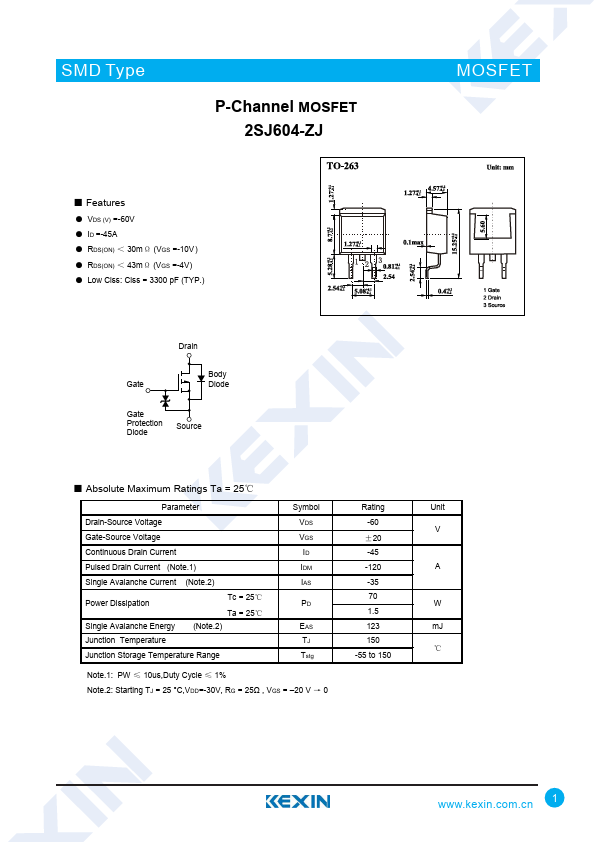

Overview: SMD Type P-Channel MOSFET 2SJ604-ZJ MOSFET ■.

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-45A.
  • RDS(ON) ＜ 30mΩ (VGS =-10V ).
  • RDS(ON) ＜ 43mΩ (VGS =-4V).
  • Low Ciss: Ciss = 3300 pF (TYP. ) Drain Gate Body Diode Gate Protection Diode Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS -60 V VGS ±20 Continuous Drain Current ID -45 Pulsed Drain Current (Note.1) IDM -120 A Single Avalanche Current (Note.2) IAS -35 Power Dissipation Tc = 25℃ PD 70 W.
