2SK2109 Datasheet N-channel MOSFET

Manufacturer: Kexin Semiconductor

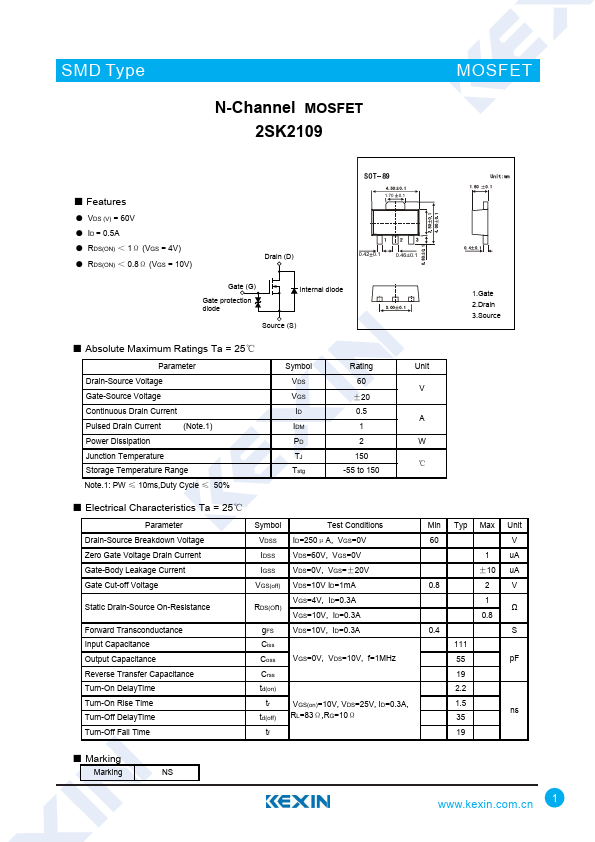

Overview: SMD Type N-Channel MOSFET 2SK2109 MOSFET ■.

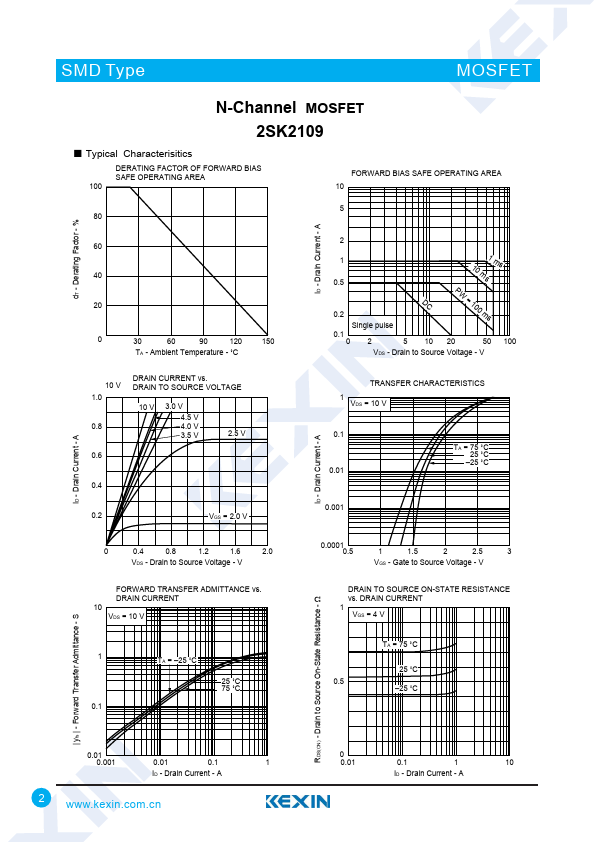

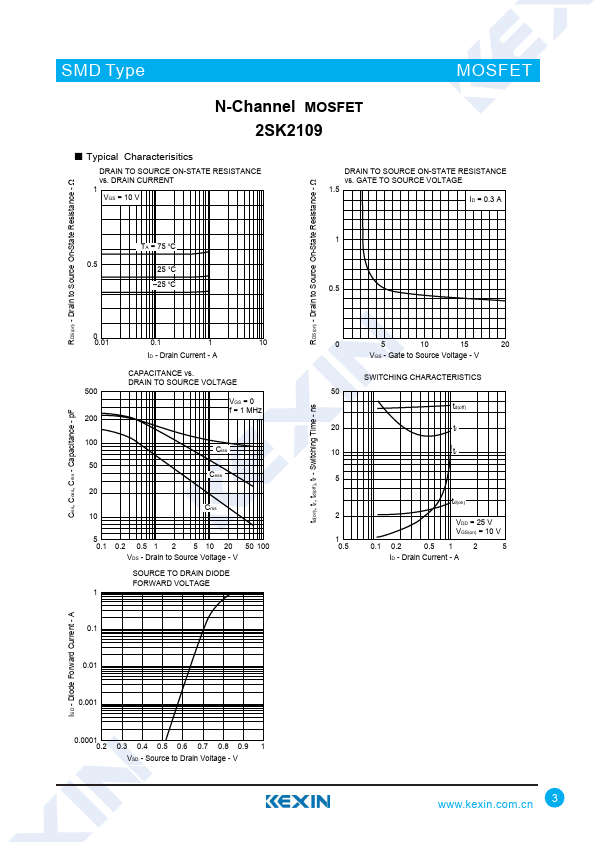

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 0.5A.
  • RDS(ON) ＜ 1Ω (VGS = 4V).
  • RDS(ON) ＜ 0.8Ω (VGS = 10V) Drain (D) 1.70 0.1 0.42 0.1 0.46 0.1 Gate (G) Gate protection diode Internal diode Source (S) 1.Gate 2.Drain 3.Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Storage Temperature Range Note.1: PW ≤ 10ms,Duty Cycle ≤ 50% Symbol Rating.
