2SK2715 - Silicon N-Channel MOSFET

Key Features

  • Low on-resistance. Fast switching speed. Wide SOA (safe operating area). Easily designed drive circuits. Easy to parallel. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation Channel temperature Storage temperature.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2715 Switching Transistor Rohm
2SK2715 Power MOSFET VBsemi
2SK2710 MOSFET Sanken electric
2SK2711 Transistor Rohm
2SK2713 Transistor Rohm

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK2701A N-Channel MOSFET
2SK2731 N-Channel MOSFET
2SK2735S Silicon N-Channel MOSFET
2SK2796S Silicon N-Channel MOSFET
2SK2033 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

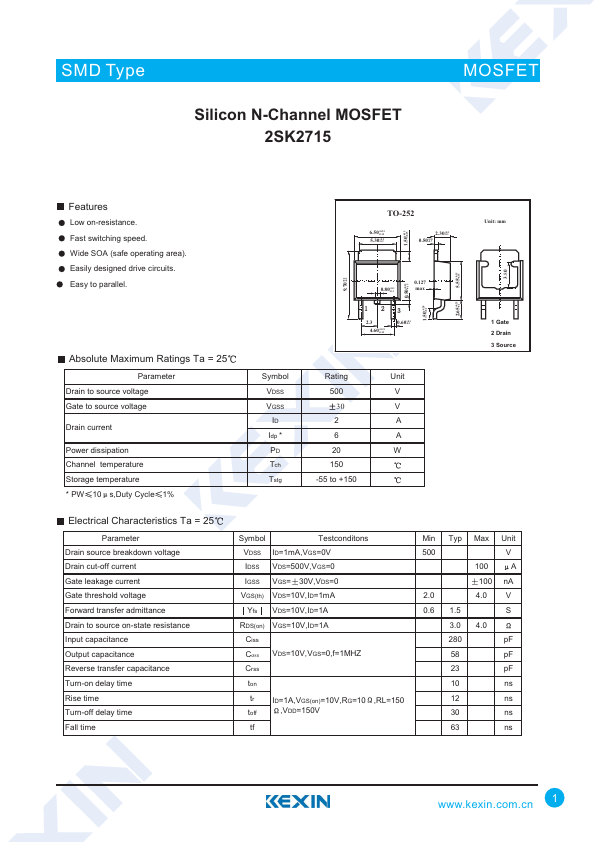

SMD Type Silicon N-Channel MOSFET 2SK2715 MOSFICET Features Low on-resistance. Fast switching speed. Wide SOA (safe operating area). Easily designed drive circuits. Easy to parallel. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% 2.3 4.60+0.15 -0.15 0.60+0.1 -0.
