2SK3048DS - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 3A.
  • RDS(ON) < 105mΩ @ VGS = 10V.
  • RDS(ON) < 125mΩ @ VGS = 4.5V D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note 1) Power D.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3048 Silicon N-Channel Power F-MOS FET Panasonic Semiconductor
2SK304 Silicon N Channel Junction FETs Kesailun Elctronic
2SK304 N-Channel MOSFET Sanyo Semicon Device
2SK3042 Silicon N-Channel Power F-MOS FET Panasonic Semiconductor
2SK3043 Silicon N-Channel Power F-MOS FET Panasonic Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3040K N-Channel Enhancement MOSFET
2SK3046DS N-Channel MOSFET
2SK3000 N-Channel Enhancement MOSFET
2SK3002DS N-Channel Enhancement MOSFET
2SK3012DSE N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

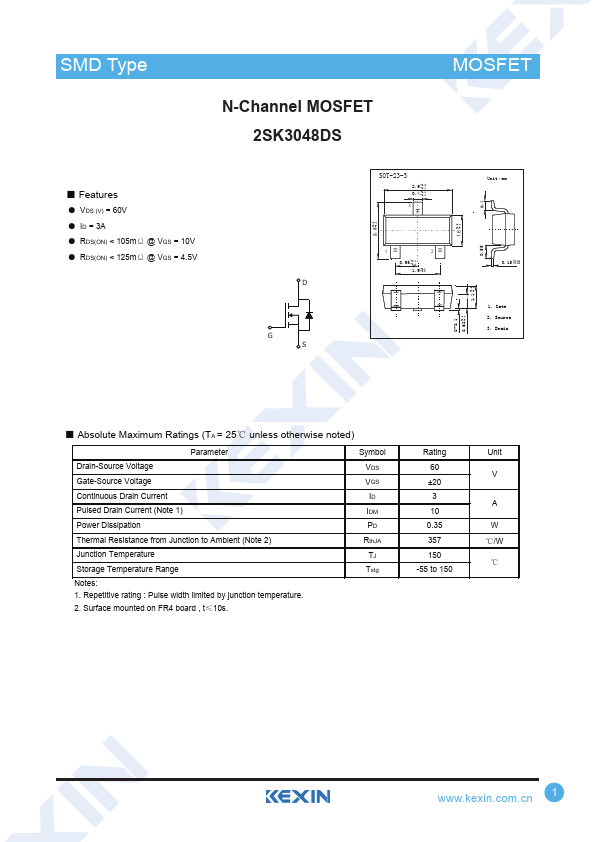

SMD Type N-Channel MOSFET 2SK3048DS TraMnOsiSsFtoErsT ■ Features ● VDS (V) = 60V ● ID = 3A ● RDS(ON) < 105mΩ @ VGS = 10V ● RDS(ON) < 125mΩ @ VGS = 4.5V D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note 1) Power Dissipation Thermal Resistance from Junction to Ambient (Note 2) Junction Temperature Storage Temperature Range Notes: 1. Repetitive rating : Pulse width limited by junction temperature. 2. Surface mounted on FR4 board , t≤10s.
