2SK3269 - N-Channel Enhacement Mode MOSFET

Key Features

  • 4.5 V drive available Low on-state resistance RDS(on)1 = 12 m MAX. (VGS = 10 V, ID = 18 A) Low gate charge QG = 30 nC TYP. (ID = 35 A, VDD = 16 V, VGS = 10 V) Built-in gate protection diode Surface mount device available +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3269 N-Channel MOSFET Panasonic Semiconductor
2SK3262 N-Channel MOSFET INCHANGE
2SK3262-01MR N-Channel MOSFET Fuji Electric
2SK3264-01MR N-Channel MOSFET Fuji Electric
2SK3264-01MR Power MOSFET Fuji

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3269-ZJ N-Channel MOSFET
2SK3224 MOS Field Effect Transistor
2SK3224-Z N-Channel MOSFET
2SK3225 N-Channel MOSFET
2SK3274S Slilicon N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

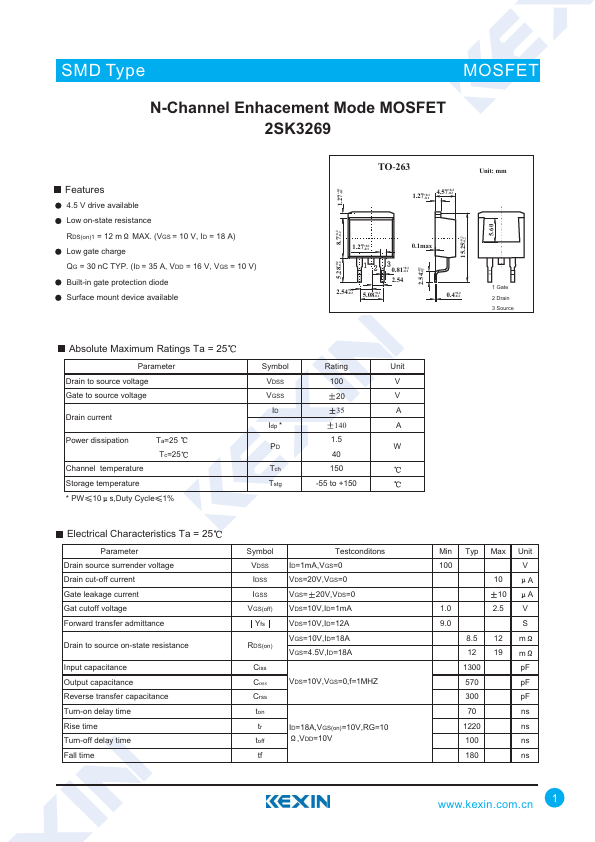

SMD Type MOSFET N-Channel Enhacement Mode MOSFET 2SK3269 Features 4.5 V drive available Low on-state resistance RDS(on)1 = 12 m MAX. (VGS = 10 V, ID = 18 A) Low gate charge QG = 30 nC TYP. (ID = 35 A, VDD = 16 V, VGS = 10 V) Built-in gate protection diode Surface mount device available +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.
