2SK3305-ZJ - N-Channel MOSFET

Key Features

  • s.
  • VDS S = 500V.
  • ID = 5 A (VGS = 10V).
  • RDS(ON) ＜ 1.5Ω (VGS = 10V).
  • Gate voltage rating: ±30 V.
  • Avalanche capability ratings Drain (D) Gate (G) Body Diode Source (S).
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 500 V VGS ±30 Continuous Drain Current ID 5 Pulsed Drain Current (Note.1) IDM 20 A Single Avalanche Current (Note.2) IAS 5 Power Dissipation Tc = 25℃ PD 75 W Ta = 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3305 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3305 N-Channel MOSFET NEC
2SK330 N-Channel MOSFET Toshiba Semiconductor
2SK3301 N-Channel MOSFET Toshiba Semiconductor
2SK3302 Silicon N-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3305 MOS Field Effect Transistor
2SK3322 MOS Field Effect Transistor
2SK3325 MOS Field Effect Transistor
2SK3353 MOS Field Effect Transistor
2SK3354 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

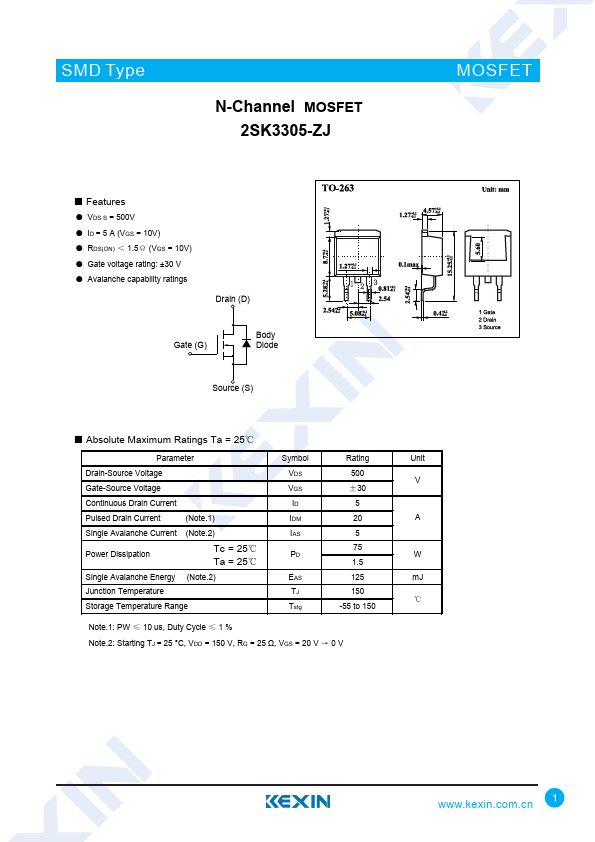

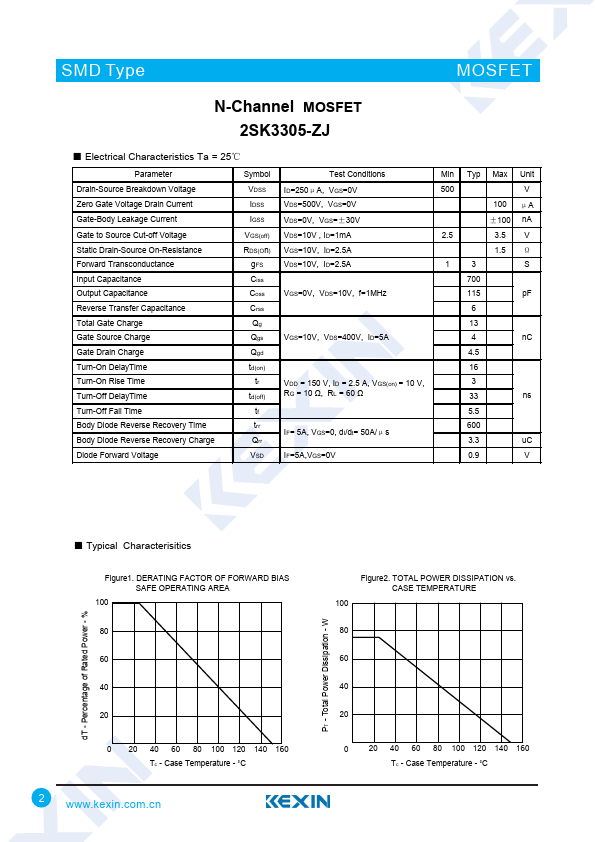

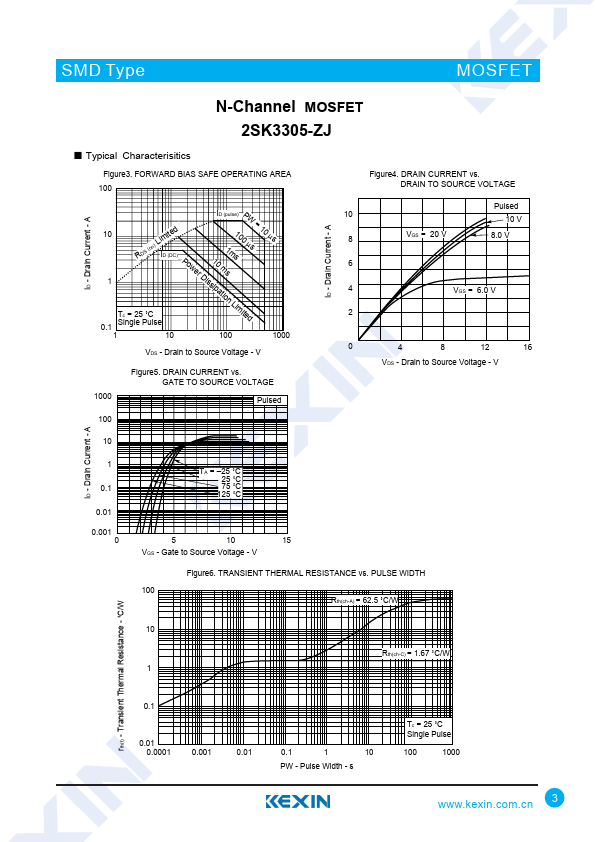

SMD Type N-Channel MOSFET 2SK3305-ZJ MOSFET ■ Features ● VDS S = 500V ● ID = 5 A (VGS = 10V) ● RDS(ON) ＜ 1.5Ω (VGS = 10V) ● Gate voltage rating: ±30 V ● Avalanche capability ratings Drain (D) Gate (G) Body Diode Source (S) ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 500 V VGS ±30 Continuous Drain Current ID 5 Pulsed Drain Current (Note.1) IDM 20 A Single Avalanche Current (Note.2) IAS 5 Power Dissipation Tc = 25℃ PD 75 W Ta = 25℃ 1.5 Single Avalanche Energy (Note.2) EAS 125 mJ Junction Temperature Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 Note.1: PW ≤ 10 us, Duty Cycle ≤ 1 % Note.2: Starting TJ = 25 °C, VDD = 150 V, RG = 25 Ω, VGS = 20 V → 0 V www.kexin.com.
