2SK3305 - MOS Field Effect Transistor

Key Features

  • Low gate charge QG = 13 nC TYP. (VDD = 400V, VGS = 10 V, ID = 5.0A) Gate voltage rating 30 V Low on-state resistance RDS(on) = 1.5 MAX. (VGS = 10 V, ID = 2.5A) Avalanche capability ratings +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source volta.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3305 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3305 N-Channel MOSFET NEC
2SK330 N-Channel MOSFET Toshiba Semiconductor
2SK3301 N-Channel MOSFET Toshiba Semiconductor
2SK3302 Silicon N-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3305-ZJ N-Channel MOSFET
2SK3322 MOS Field Effect Transistor
2SK3325 MOS Field Effect Transistor
2SK3353 MOS Field Effect Transistor
2SK3354 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

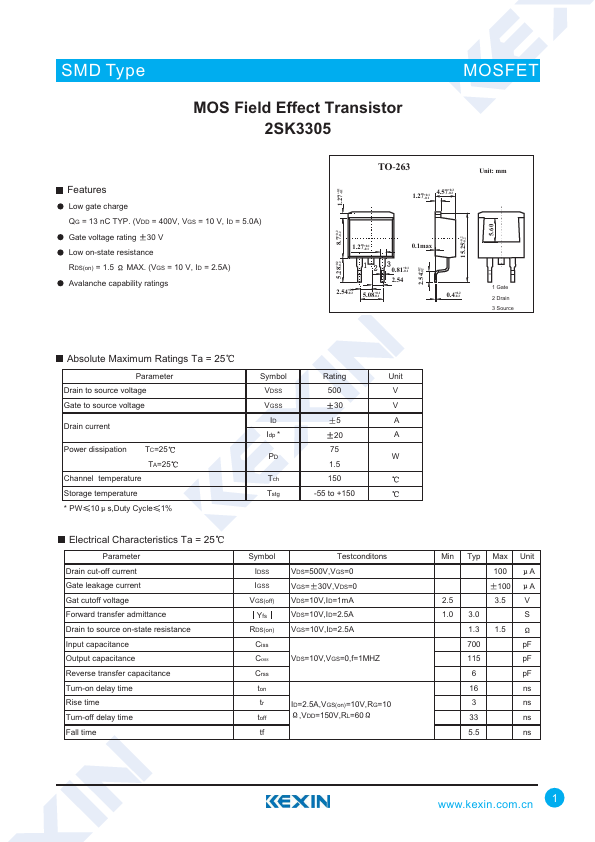

SMD Type MOS Field Effect Transistor 2SK3305 MOSFET Features Low gate charge QG = 13 nC TYP. (VDD = 400V, VGS = 10 V, ID = 5.0A) Gate voltage rating 30 V Low on-state resistance RDS(on) = 1.5 MAX. (VGS = 10 V, ID = 2.5A) Avalanche capability ratings +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 500 V VGSS 30 V ID 5 A Idp * 20 A 75 PD W 1.
