2SK3354 - MOS Field Effect Transistor

Features

  • Super low on-state resistance: RDS(on)1 = 8.0 m MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 12 m MAX. (VGS = 4 V, ID = 42 A) Low Ciss: Ciss = 6300 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature.
  • PW 10 s,Duty Cycle 1% Symbol VDSS VGSS(AC) ID Idp.
  • PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3354 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3354 N-Channel MOSFET NEC
2SK3351 N-Channel MOSFET Sanyo Semicon Device
2SK3352 N-Channel MOSFET Sanyo Semicon Device
2SK3353 N-Channel MOSFET Transistor Inchange Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3353 MOS Field Effect Transistor
2SK3355 MOS Field Effect Transistor
2SK3322 MOSFET
2SK3018 N-Channel MOSFET
2SK3019 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

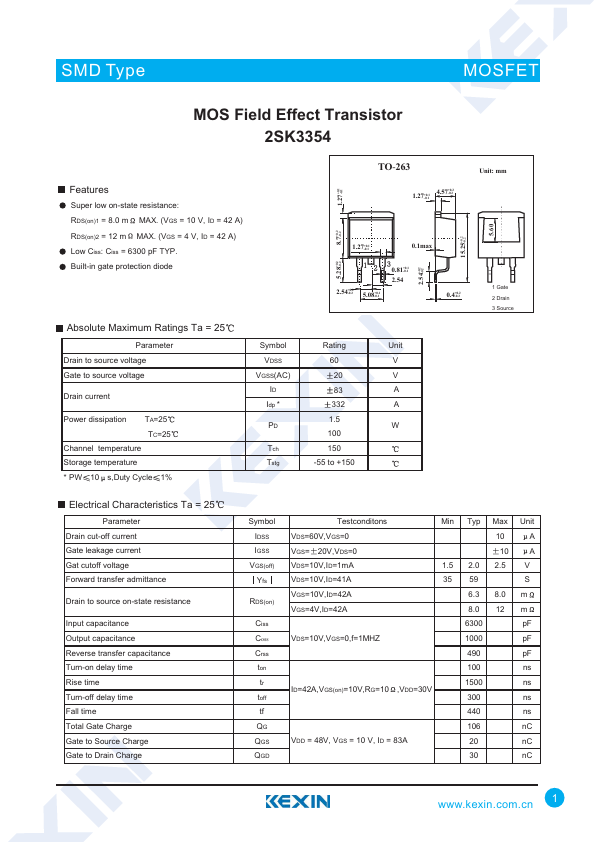

SMD Type MOSFET MOS Field Effect Transistor 2SK3354 Features Super low on-state resistance: RDS(on)1 = 8.0 m MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 12 m MAX. (VGS = 4 V, ID = 42 A) Low Ciss: Ciss = 6300 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol VDSS VGSS(AC) ID Idp * PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 +0.2 8.7 -0.2 +0.2 5.28 -0.2 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Rating Unit 60 V 20 V 83 A 332 A 1.
