2SK3365 - MOS Field Effect Transistor

Key Features

  • Super low on-state resistance: RDS(on)1 = 14 m MAX. (VGS = 10 V, ID = 15 A) RDS(on)2 = 21m MAX. (VGS = 4.5 V, ID = 15A) RDS(on)3 = 29m MAX. (VGS = 4 V, ID = 15A) Low Ciss: Ciss = 1300 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3365 N-Channel MOSFET NEC
2SK3360 N-Channel MOSFET NEC
2SK3361 N-Channel MOSFET NEC
2SK3362 N-Channel MOSFET Fuji Electric
2SK3362-01 N-CHANNEL SILICON POWER MOSFET Fuji Electric

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3366 MOS Field Effect Transistor
2SK3367 MOS Field Effect Transistor
2SK3322 MOSFET
2SK3353 MOS Field Effect Transistor
2SK3354 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

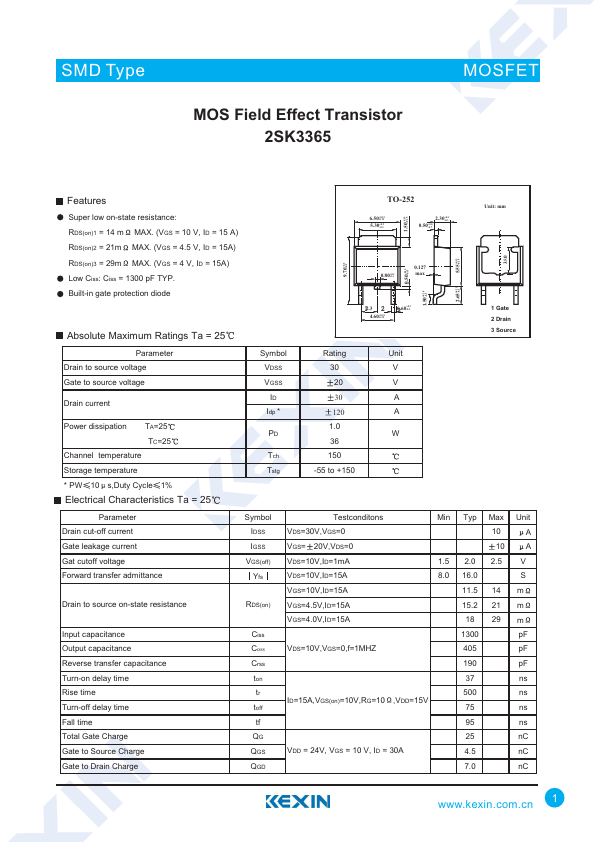

SMD Type MOS Field Effect Transistor 2SK3365 MOSFICET Features Super low on-state resistance: RDS(on)1 = 14 m MAX. (VGS = 10 V, ID = 15 A) RDS(on)2 = 21m MAX. (VGS = 4.5 V, ID = 15A) RDS(on)3 = 29m MAX. (VGS = 4 V, ID = 15A) Low Ciss: Ciss = 1300 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.
