2SK3385 - MOS Field Effect Transistor

Key Features

  • Low on-resistance RDS(on)1 = 28 m MAX. (VGS = 10 V, ID = 15 A) RDS(on)2 = 45 m MAX. (VGS = 4.0 V, ID = 15 A) Low Ciss : Ciss = 1500 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to so.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3385 N-Channel MOSFET NEC
2SK3380 N-Channel MOSFET Hitachi Semiconductor
2SK3386 N-Channel MOSFET NEC
2SK3389 N-Channel MOSFET Toshiba Semiconductor
2SK330 N-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3386 MOS Field Effect Transistor
2SK3322 MOSFET
2SK3353 MOS Field Effect Transistor
2SK3354 MOS Field Effect Transistor
2SK3355 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

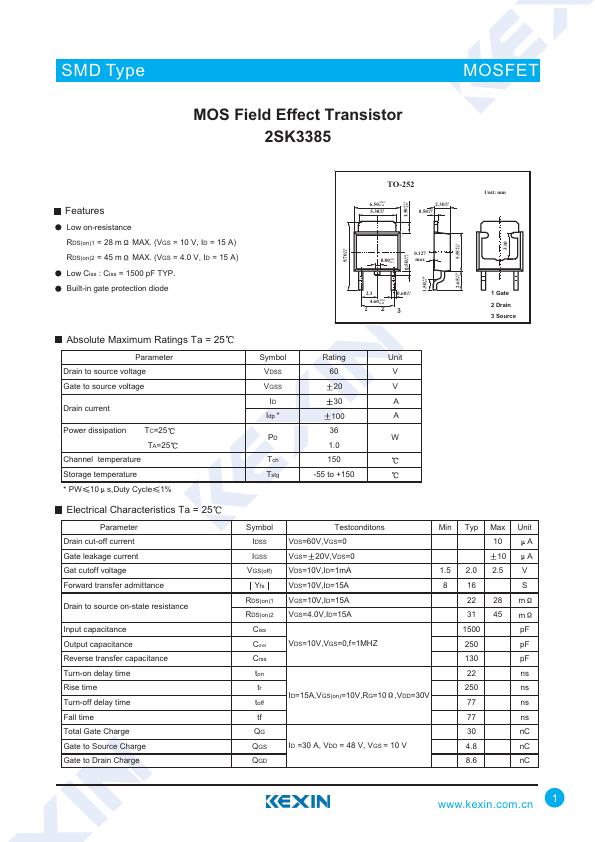

SMD Type MOS Field Effect Transistor 2SK3385 MOSFICET Features Low on-resistance RDS(on)1 = 28 m MAX. (VGS = 10 V, ID = 15 A) RDS(on)2 = 45 m MAX. (VGS = 4.0 V, ID = 15 A) Low Ciss : Ciss = 1500 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.
