2SK3507 - MOS Field Effect Transistor

Key Features

  • 4.5 V drive available Low on-state resistance RDS(on)1 = 45 m MAX. (VGS = 10 V, ID = 11 A) Low gate charge QG = 8.5 nC TYP. (VDD = 24 V, VGS = 10 V, ID = 22 A) Built-in G-S protection diode Surface mount package available Absolute Maximum Ratings Ta = 25 +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3507 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK350 N-Channel MOSFET Transistor Inchange Semiconductor
2SK350 Silicon N-Channel MOSFET Hitachi
2SK3501 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3501-01 N-CHANNEL SILICON POWER MOSFET Fuji Electric

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3503 N-Channel MOSFET
2SK3510 MOS Field Effect Transistor
2SK3511 MOSFET
2SK3560 Silicon N-channel power MOSFET
2SK3570 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

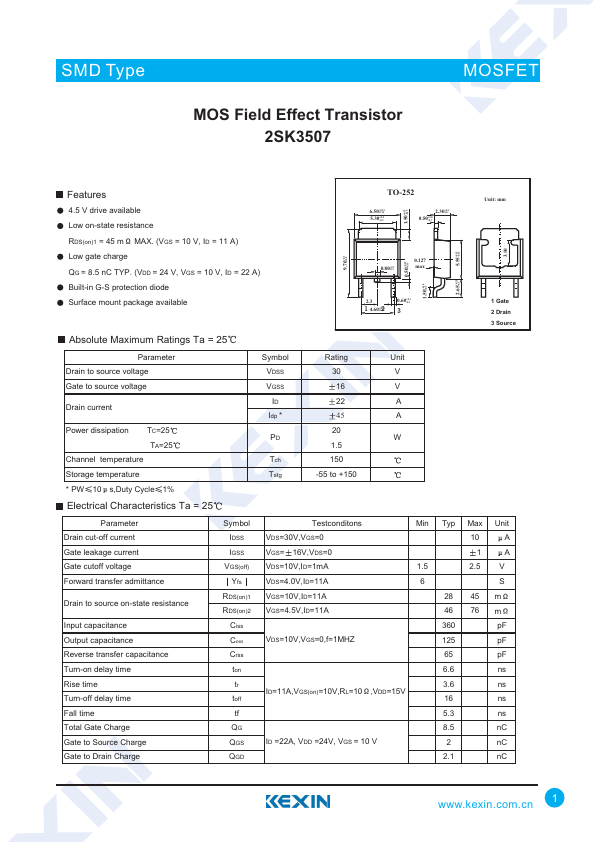

SMD Type MOS Field Effect Transistor 2SK3507 MOSFICET Features 4.5 V drive available Low on-state resistance RDS(on)1 = 45 m MAX. (VGS = 10 V, ID = 11 A) Low gate charge QG = 8.5 nC TYP. (VDD = 24 V, VGS = 10 V, ID = 22 A) Built-in G-S protection diode Surface mount package available Absolute Maximum Ratings Ta = 25 +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.
