2SK3652 - N-channel Enhancement Mode MOSFET

Key Features

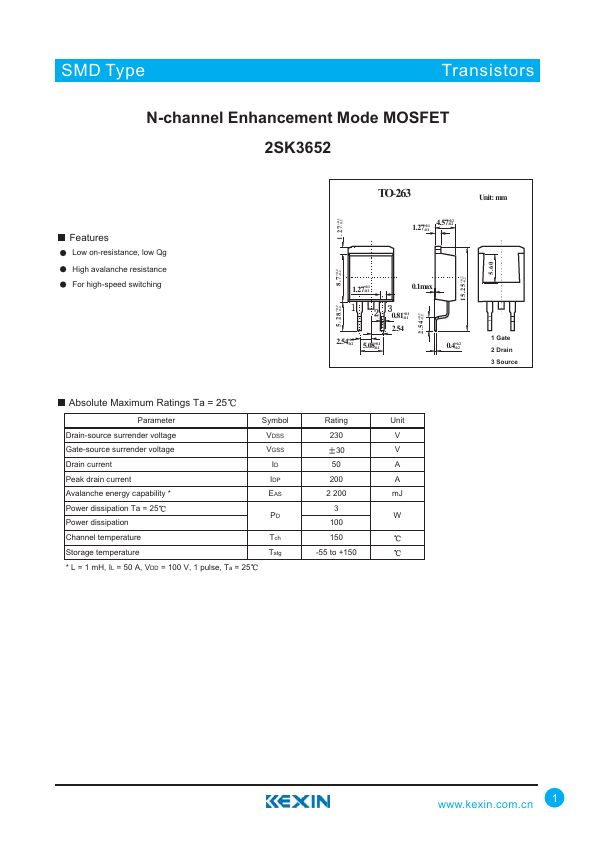

  • Low on-resistance, low Qg High avalanche resistance For high-speed switching + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 . 2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Drain-source surrender voltage VDSS 230 V Gate-source surrender voltage VGSS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3652 N-channel enhancement mode MOSFET Panasonic
2SK365 N-Channel MOSFET Toshiba Semiconductor
2SK3650-01L N-Channel MOSFET Transistor Inchange Semiconductor
2SK3650-01L N-CHANNEL SILICON POWER MOSFET Fuji Electric
2SK3650-01S N-Channel MOSFET Transistor Inchange Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3628 Silicon N-channel Power MOSFET
2SK3637 Silicon N-channel Power MOSFET
2SK3638 MOS Field Effect Transistor
2SK3639 MOS Field Effect Transistor
2SK3640 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

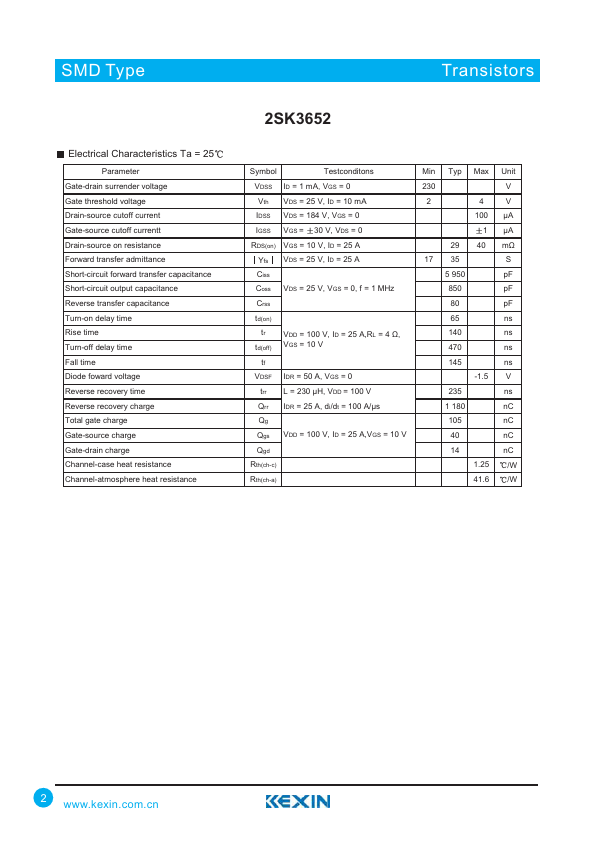

SMD Type TransistIoCrs N-channel Enhancement Mode MOSFET 2SK3652 Features Low on-resistance, low Qg High avalanche resistance For high-speed switching + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 .
