2SK3731 - N-channel enhancement mode MOSFET

Key Features

  • Low on-resistance, low Qg High avalanche resistance For high-speed switching Absolute Maximum Ratings Ta = 25 Parameter Drain-source surrender voltage Gate-source surrender voltage Drain current Peak drain current Avalanche energy capability.
  • Power dissipation Power dissipation Ta = 25 Channel temperature Storage temperature.
  • : L = 2.79 mH, IL = 20 A, VDD = 50 V, 1 pulse, Ta = 25 Symbol VDSS VGSS ID IDP EAS PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3731 N-Channel MOSFET Panasonic
2SK373 N-Channel MOSFET Toshiba Semiconductor
2SK3730-01MR N-CHANNEL SILICON POWER MOSFET Fuji Electric
2SK3730-01MR N-Channel MOSFET Transistor Inchange Semiconductor
2SK3736 N-Channel MOSFET Transistor Inchange Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3716 MOS Field Effect Transistor
2SK3723 N-Channel MOSFET
2SK3740 MOS Field Effect Transistor
2SK3794 MOS Field Effect Transistor
2SK3018 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

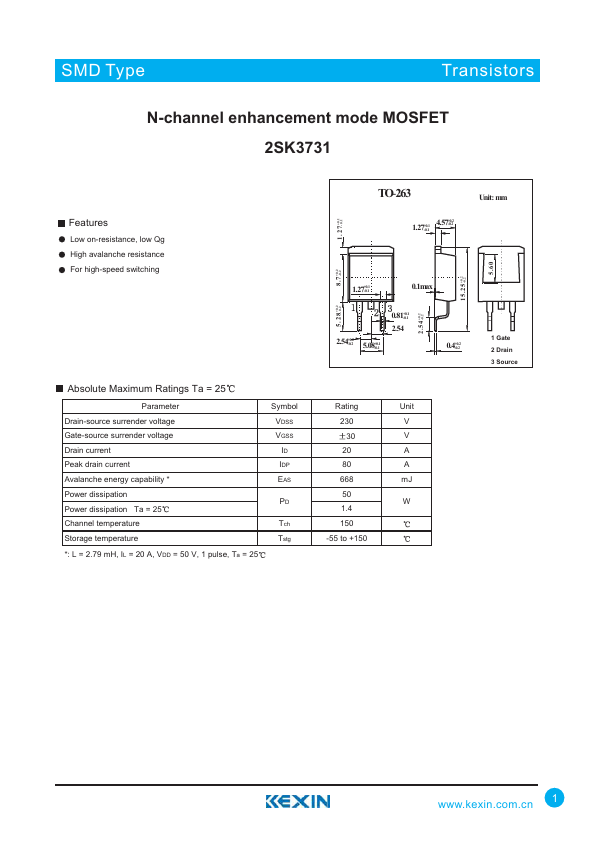

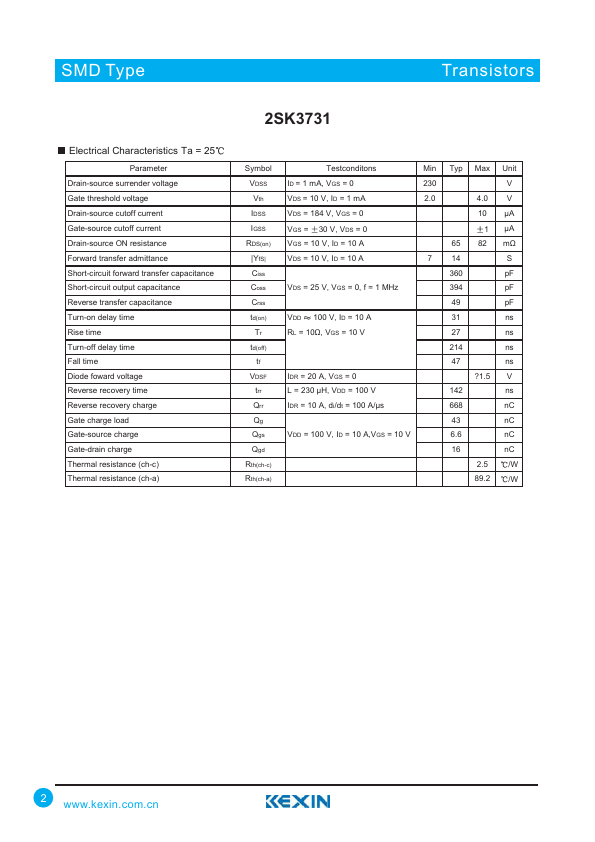

SMD Type TransistIoCrs N-channel enhancement mode MOSFET 2SK3731 Features Low on-resistance, low Qg High avalanche resistance For high-speed switching Absolute Maximum Ratings Ta = 25 Parameter Drain-source surrender voltage Gate-source surrender voltage Drain current Peak drain current Avalanche energy capability * Power dissipation Power dissipation Ta = 25 Channel temperature Storage temperature *: L = 2.79 mH, IL = 20 A, VDD = 50 V, 1 pulse, Ta = 25 Symbol VDSS VGSS ID IDP EAS PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 + 8 .7 0.2 -0.2 5 + 5 .2 8 0.2 -0.2 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 .
