2SK3740 - MOS Field Effect Transistor

Key Features

  • Gate voltage rating: 30 V Low on-state resistance RDS(on) = 160 mÙ MAX. (VGS = 10 V, ID = 10 A) Low gate charge QG = 47 nC TYP. (VDD = 200 V, VGS = 10 V, ID = 20 A) Surface mount package available +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to sour.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3740 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3740 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK374 N-Channel MOSFET Panasonic Semiconductor
2SK3742 N-Channel MOSFET Toshiba Semiconductor
2SK3742 N-Channel MOSFET INCHANGE

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3716 MOS Field Effect Transistor
2SK3723 N-Channel MOSFET
2SK3731 N-channel enhancement mode MOSFET
2SK3794 MOS Field Effect Transistor
2SK3018 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

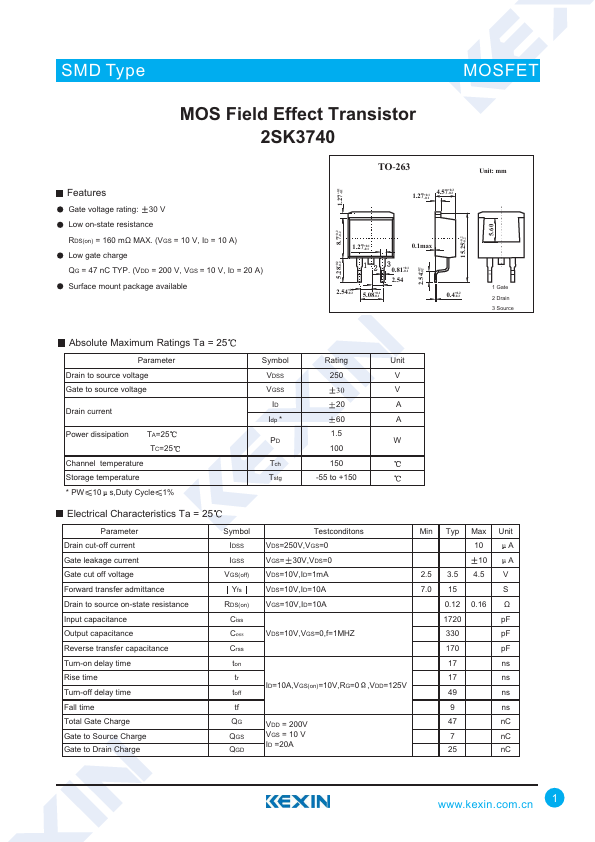

SMD Type MOSFET MOS Field Effect Transistor 2SK3740 Features Gate voltage rating: 30 V Low on-state resistance RDS(on) = 160 mÙ MAX. (VGS = 10 V, ID = 10 A) Low gate charge QG = 47 nC TYP. (VDD = 200 V, VGS = 10 V, ID = 20 A) Surface mount package available +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 250 V VGSS 30 V ID 20 A Idp * 60 A 1.
