A9452 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 4 A (VGS = ±12V).
  • RDS(ON) ＜ 0.038Ω (VGS = 10V).
  • RDS(ON) ＜ 0.05Ω (VGS = 4.5V).
  • RDS(ON) ＜ 0.08Ω (VGS = 2.5V).
  • Marking:A9452 N-Channel MOSFET A9452 1.70 0.1 D 0.42 0.1 0.46 0.1 MOSFET G S 1.Gate 2.Drain 3.Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Junction Temperature Storage Temperature Range Symbol.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A94 High Voltage Transistor GME
A94 TRANSISTOR Jiangsu Changjiang Electronics
A94-10 Level Sensors Conductive ETC
A94-20 Level Sensors Conductive ETC
A940 PNP Silicon Power Transistor Mospec Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

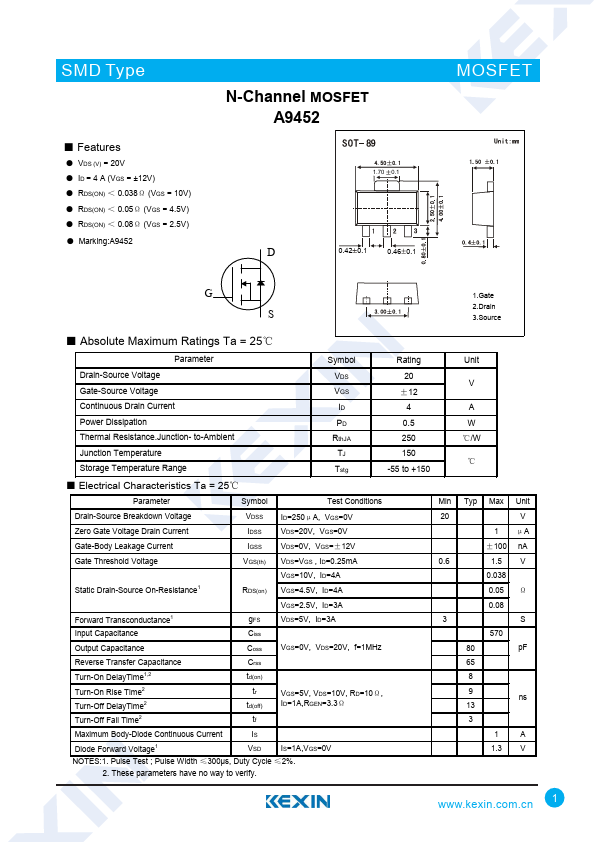

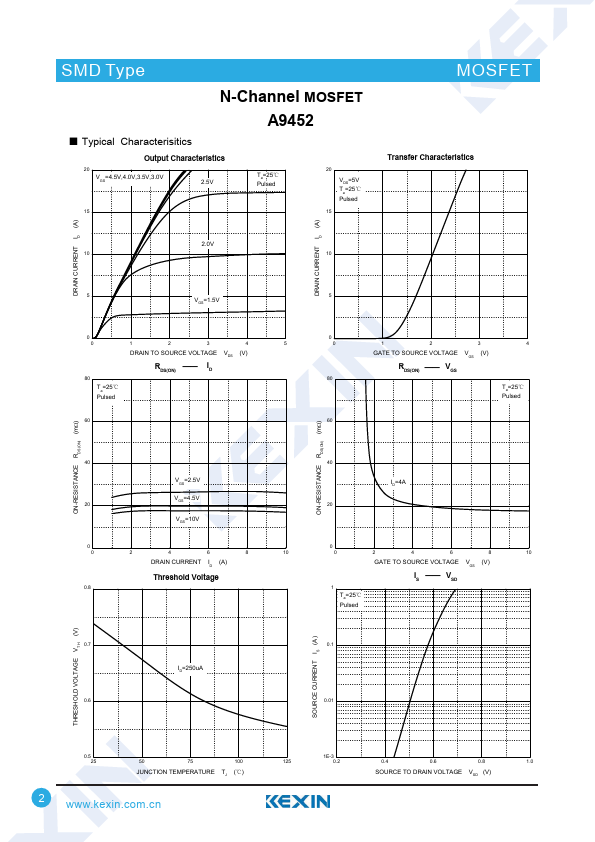

SMD Type ■ Features ● VDS (V) = 20V ● ID = 4 A (VGS = ±12V) ● RDS(ON) ＜ 0.038Ω (VGS = 10V) ● RDS(ON) ＜ 0.05Ω (VGS = 4.5V) ● RDS(ON) ＜ 0.08Ω (VGS = 2.5V) ● Marking:A9452 N-Channel MOSFET A9452 1.70 0.1 D 0.42 0.1 0.46 0.1 MOSFET G S 1.Gate 2.Drain 3.Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Symbol VDS VGS ID PD RthJA TJ Tstg Rating 20 ±12 4 0.
