AO4202 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 19 A (VGS = 10V).
  • RDS(ON) ＜ 5.3mΩ (VGS = 10V).
  • RDS(ON) ＜ 7mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4202 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4202 30V N-Channel MOSFET VBsemi
AO4240 40V N-Channel MOSFET Alpha & Omega Semiconductors
AO4260 60V N-Channel MOSFET Alpha & Omega Semiconductors
AO4262E N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4240 N-Channel MOSFET
AO4240-HF N-Channel MOSFET
AO4260 N-Channel MOSFET
AO4264 N-Channel MOSFET
AO4264-HF N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

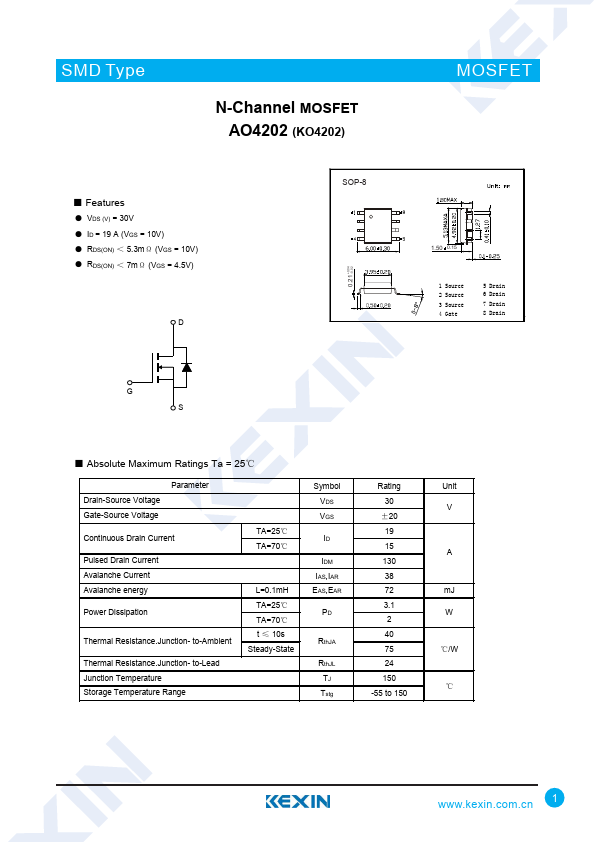

SMD Type N-Channel MOSFET AO4202 (KO4202) ■ Features ● VDS (V) = 30V ● ID = 19 A (VGS = 10V) ● RDS(ON) ＜ 5.3mΩ (VGS = 10V) ● RDS(ON) ＜ 7mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJL TJ Tstg Rating 30 ±20 19 15 130 38 72 3.1 2 40 75 24 150 -55 to 150 Unit V A mJ W ℃/W ℃ www.
