AO4202 - 30V N-Channel MOSFET

VBsemi

Key Features

Halogen-free.
Trench Power MOSFET.
Optimized for High-Side Synchronous Rectifier Operation.
100 % Rg Tested.
100 % UIS Tested S1 S2 S3 G4 SO-8 8D 7D 6D 5D.

AO4202 30v n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	AO4202
Manufacturer	VBsemi
File Size	183.78 KB
Description	30V N-Channel MOSFET
Datasheet	AO4202 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4202	N-Channel MOSFET	Kexin
AO4202	30V N-Channel MOSFET	Alpha & Omega Semiconductors
AO4240	N-Channel MOSFET	Kexin
AO4240	40V N-Channel MOSFET	Alpha & Omega Semiconductors
AO4240-HF	N-Channel MOSFET	Kexin

Other Datasheets by VBsemi

Part Number	Description
AO4294	N-Channel 100V Power MOSFET
AO4354	N-Channel MOSFET
AO4407	P-Channel MOSFET
AO4407A	P-Channel MOSFET
AO4410	N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

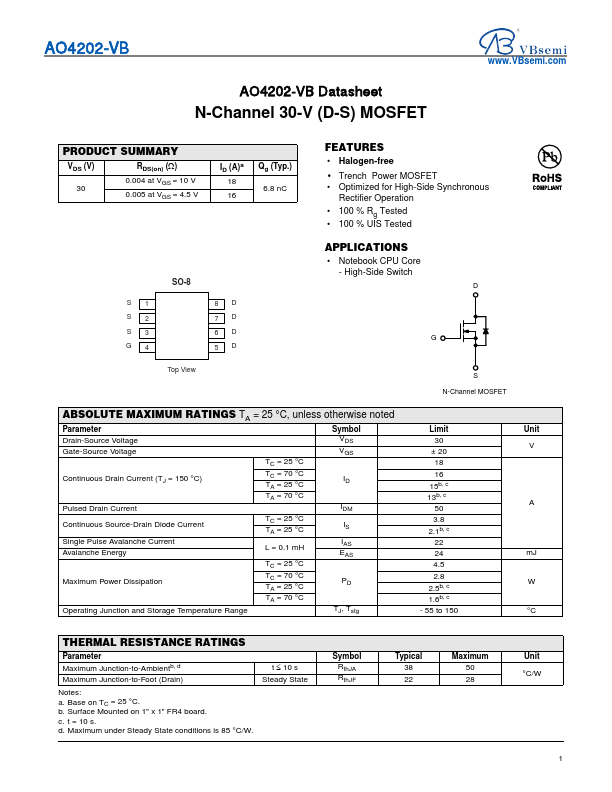

AO4202-VB AO4202-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.004 at VGS = 10 V 0.005 at VGS = 4.5 V ID (A)a 18 16 Qg (Typ.) 6.
