AO4402 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 20 A (VGS = 4.5V).
  • RDS(ON) ＜ 5.5mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 7mΩ (VGS = 2.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Avalanche energy L=0.1mH Power Dissipation Thermal Resistance. Junction- to-Ambient T.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4402 20V N-Channel MOSFET Alpha & Omega Semiconductors
AO4402 N-Channel MOSFET Freescale
AO4402G 20V N-Channel MOSFET Alpha & Omega Semiconductors
AO4400 N-Channel MOSFET Alpha & Omega Semiconductors
AO4401 P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4403-HF P-Channel MOSFET
AO4410 N-Channel MOSFET
AO4430 N-Channel MOSFET
AO4444 N-Channel MOSFET
AO4447A-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

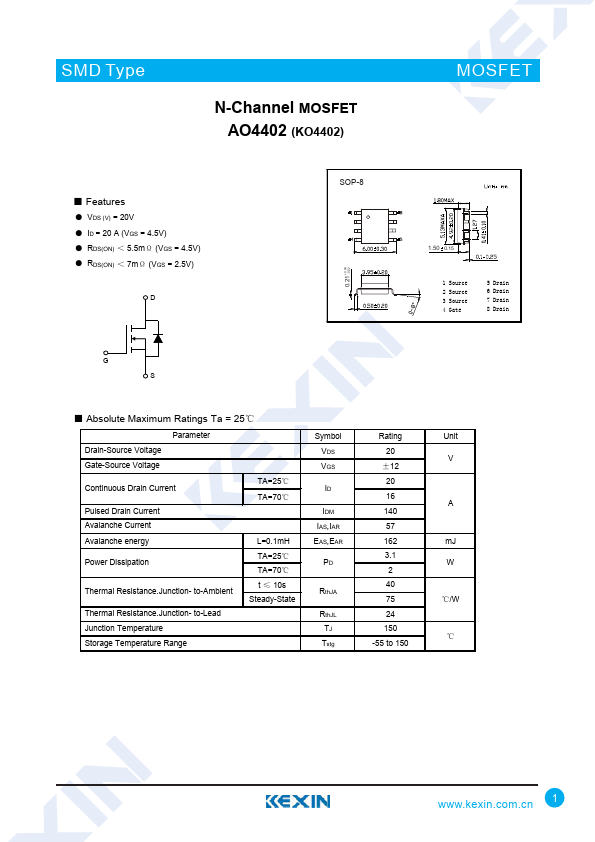

SMD Type N-Channel MOSFET AO4402 (KO4402) ■ Features ● VDS (V) = 20V ● ID = 20 A (VGS = 4.5V) ● RDS(ON) ＜ 5.5mΩ (VGS = 4.5V) ● RDS(ON) ＜ 7mΩ (VGS = 2.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Avalanche energy L=0.1mH Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJL TJ Tstg Rating 20 ±12 20 16 140 57 162 3.
