Kexin Electronics AO4403
P-Channel MOSFET
| Part No. | AO4403 |
|---|---|
| Datasheet | AO4403 Download |
| Manufacturer | Kexin Electronics |
| Description | P-Channel MOSFET |
| Buy | Stock & Price |

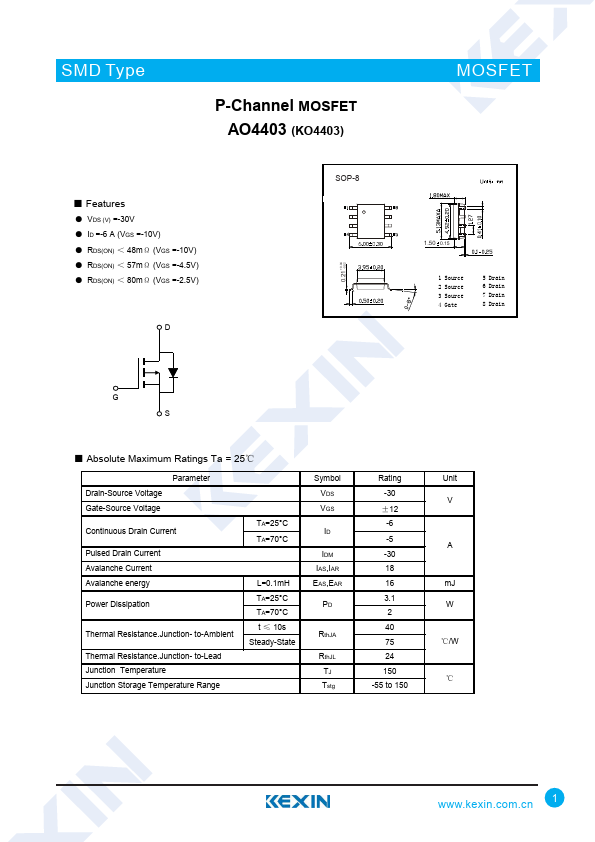

FEATURES
● VDS (V) =-30V● ID =-6 A (VGS =-10V)
● RDS(ON) ＜ 48mΩ (VGS =-10V)
● RDS(ON) ＜ 57mΩ (VGS =-4.5V)
● RDS(ON) ＜ 80mΩ (VGS =-2.5V) +0.04 0.21 -0.02 SOP-8 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range TA=25°C TA=70°C L=0.1mH TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJL TJ Tstg Rating -30 ±12 -6 -5 -30 18 16 3.1 2 40 75 24 150 -55 to 150 Unit V A mJ W ℃/W ℃ 1 SMD Type MOSFET P-Channel MOSFET AO4403 (KO4403)●

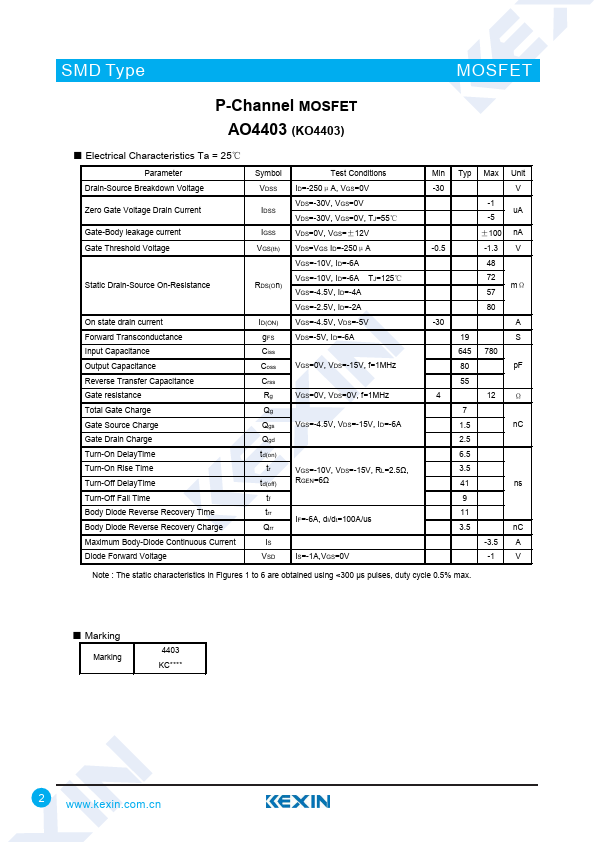

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body leakage current Gate Threshold Voltage Static Drain-Sourc...
