AO4437 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-12V.
  • ID =-11 A (VGS =-4.5V).
  • RDS(ON) ＜ 16mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 20mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 25mΩ (VGS =-1.8V).
  • ESD Rating: 4KV HBM +0.04 0.21 -0.02 SOP-8 D G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4437 P-Channel MOSFET Alpha & Omega Semiconductors
AO4430 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4430 N-Channel MOSFET VBsemi
AO4430L N-Channel FET Alpha & Omega Semiconductors
AO4433 P-Channel Power MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4430 N-Channel MOSFET
AO4435 P-Channel MOSFET
AO4438 N-Channel MOSFET
AO4402 N-Channel MOSFET
AO4403 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

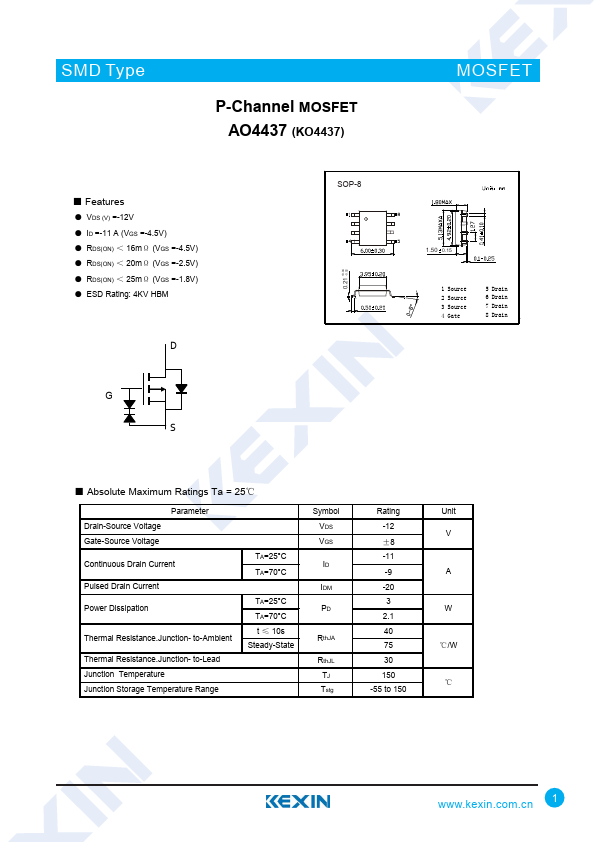

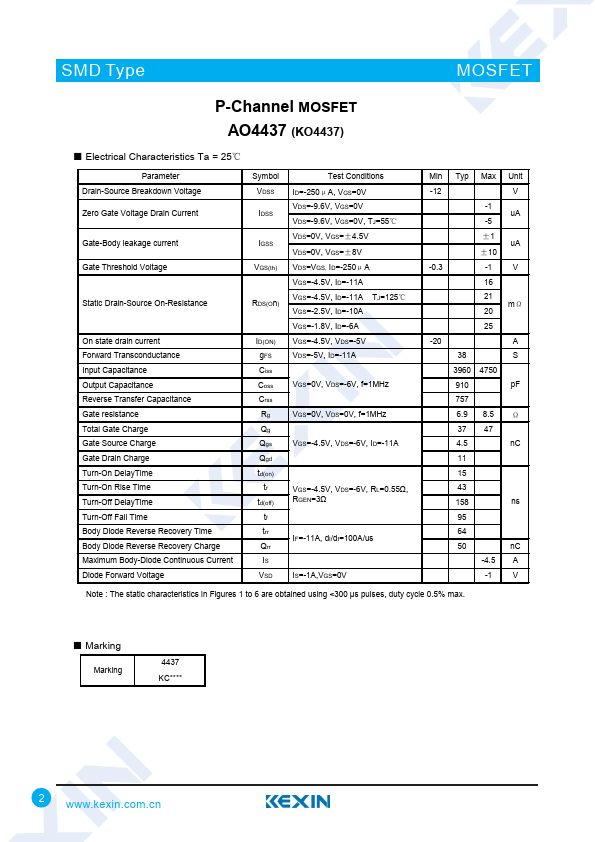

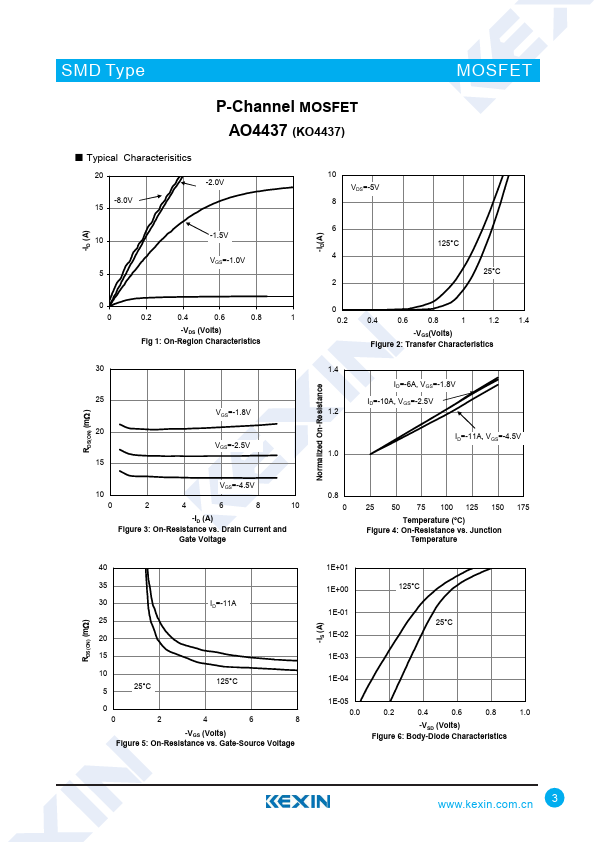

SMD Type P-Channel MOSFET AO4437 (KO4437) ■ Features ● VDS (V) =-12V ● ID =-11 A (VGS =-4.5V) ● RDS(ON) ＜ 16mΩ (VGS =-4.5V) ● RDS(ON) ＜ 20mΩ (VGS =-2.5V) ● RDS(ON) ＜ 25mΩ (VGS =-1.8V) ● ESD Rating: 4KV HBM +0.04 0.21 -0.02 SOP-8 D G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range TA=25°C TA=70°C TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -12 ±8 -11 -9 -20 3 2.1 40 75 30 150 -55 to 150 Unit V A W ℃/W ℃ www.
