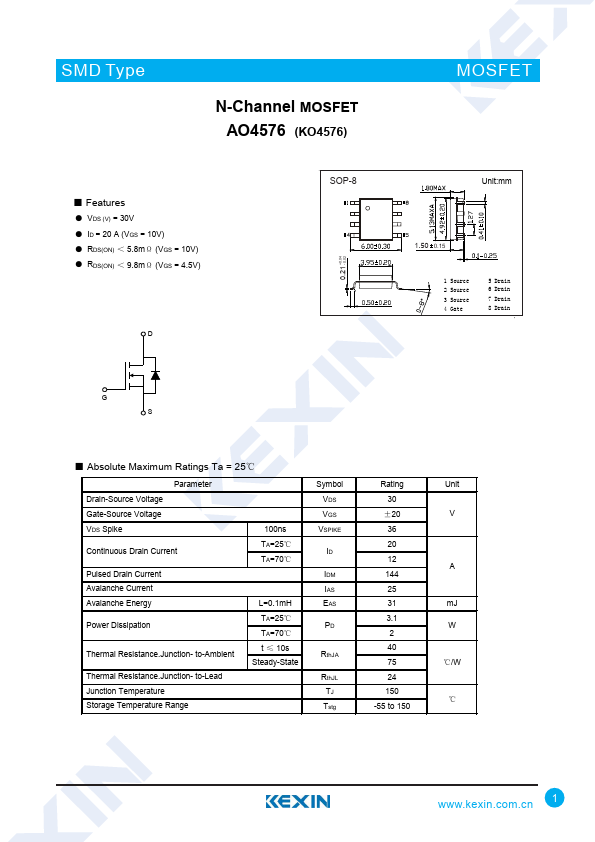

AO4576 Datasheet N-channel MOSFET

Manufacturer: Kexin Semiconductor

Overview: SMD Type N-Channel MOSFET AO4576 (KO4576) ■.

Datasheet Details

Part number	AO4576
Manufacturer	Kexin Semiconductor
File Size	1.39 MB
Description	N-Channel MOSFET
Datasheet	AO4576-Kexin.pdf

Key Features

s.
VDS (V) = 30V.
ID = 20 A (VGS = 10V).
RDS(ON) ＜ 5.8mΩ (VGS = 10V).
RDS(ON) ＜ 9.8mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage VDS Spike Parameter 100ns Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient T.
