AO4578
AO4578 is N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 30V
- ID = 20 A (VGS = 10V)
- RDS(ON) ＜ 5.7mΩ (VGS = 10V)
- RDS(ON) ＜ 9mΩ (VGS = 4.5V)
SOP-8
+0.04 0.21 -0.02
MOSFET
Unit:mm
1.50 0.15
1 Source 2 Source 3 Source 4 Gate
5 Drain 6 Drain 7 Drain 8 Drain
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage VDS Spike
Parameter
Continuous Drain Current
Pulsed Drain Current Avalanche Current Avalanche Energy
Power Dissipation
Thermal Resistance.Junction- to-Ambient
Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
L=0.1m H TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS
VSPIKE
IDM IAS EAS
Rth JA
Rth JL TJ Tstg
Rating 30
±20 36 20 15 120 40 8 3.1 2 40 75 24 150
-55 to 150
Unit V
A m J W ℃/W ℃
.kexin..cn 1
SMD Type
MOSFET

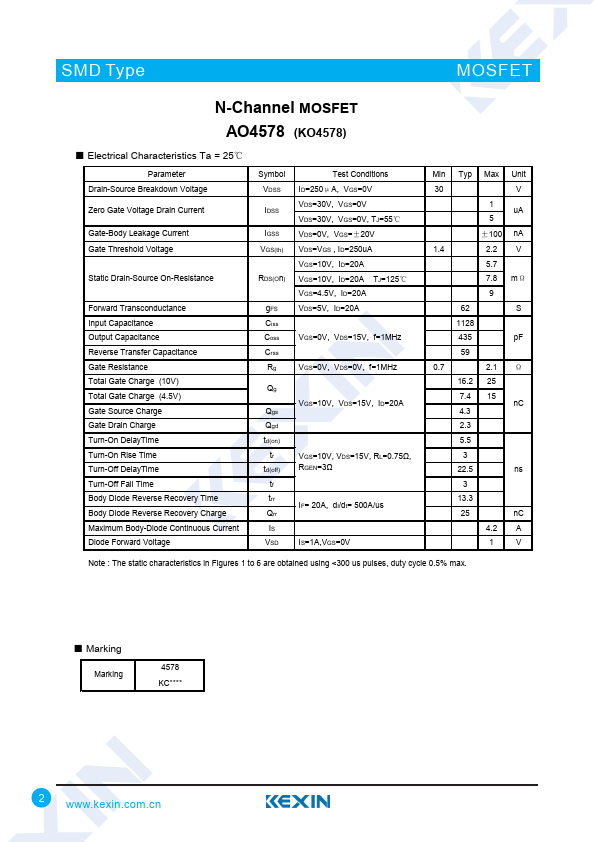

N-Channel MOSFET AO4578...
