AO4838 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 11A (VGS = 10V).
  • RDS(ON) ＜ 9.6mΩ (VGS = 10V).
  • RDS(ON) ＜ 13mΩ (VGS = 4.5V) +0.04 0.21 -0.02 D1 D2 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy L=0.1mH Power Dissipation Thermal Resistance. Junction- to-Ambient.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4838 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4838 30V Dual N-Channel MOSFET VBsemi
AO4830 80V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4832 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4832 30V Dual N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4830 Dual N-Channel MOSFET
AO4832 Dual N-Channel MOSFET
AO4801 Dual P-Channel MOSFET
AO4803A Dual P-Channel MOSFET
AO4805 Dual P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

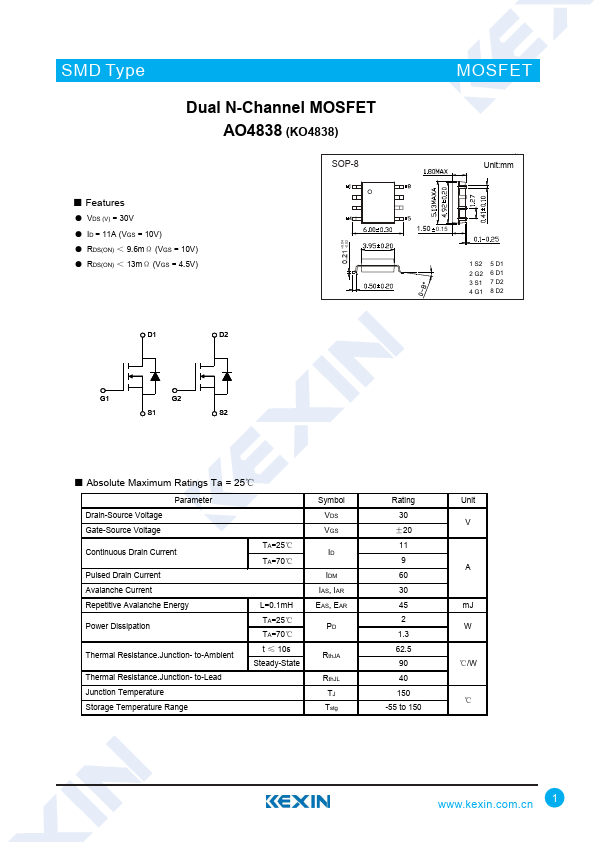

SMD Type Dual N-Channel MOSFET AO4838 (KO4838) SOP-8 ■ Features ● VDS (V) = 30V ● ID = 11A (VGS = 10V) ● RDS(ON) ＜ 9.6mΩ (VGS = 10V) ● RDS(ON) ＜ 13mΩ (VGS = 4.5V) +0.04 0.21 -0.02 D1 D2 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy L=0.1mH Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS, IAR EAS, EAR PD RthJA RthJL TJ Tstg Rating 30 ±20 11 9 60 30 45 2 1.3 62.
