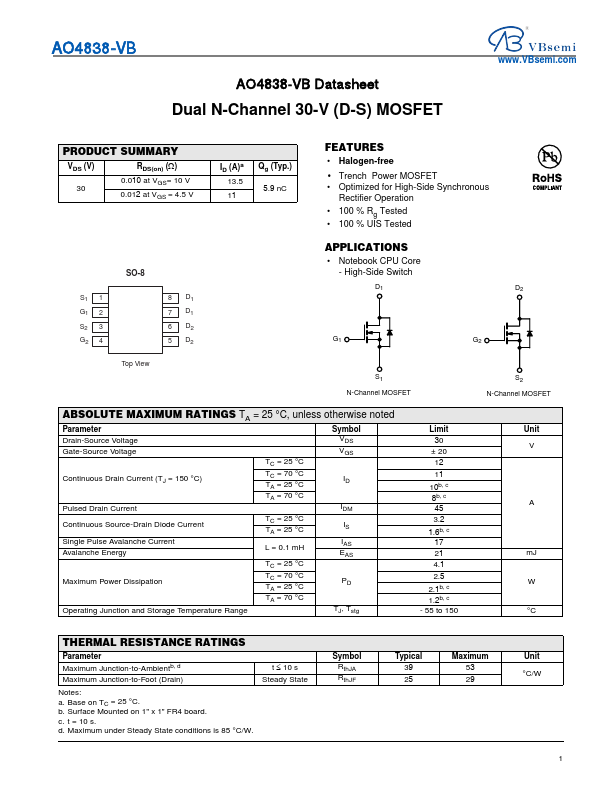

AO4838
AO4838 is 30V Dual N-Channel MOSFET manufactured by VBsemi.
FEATURES
- Halogen-free
- Trench Power MOSFET
- Optimized for High-Side Synchronous
Rectifier Operation
- 100 % Rg Tested
- 100 % UIS Tested
S1 1 G1 2 S2 3 G2 4
SO-8
8 D1 7 D1 6 D2 5 D2
APPLICATIONS
- Notebook CPU Core
- High-Side Switch
D1
G1
D2 G2
Top View
S1 N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
TC = 25 °C
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
Pulsed Drain Current
TA = 70 °C IDM
Continuous Source-Drain Diode Current
TC = 25 °C TA = 25 °C
Single Pulse Avalanche Current Avalanche Energy
L = 0.1 m H
TC = 25 °C
Maximum Power...
