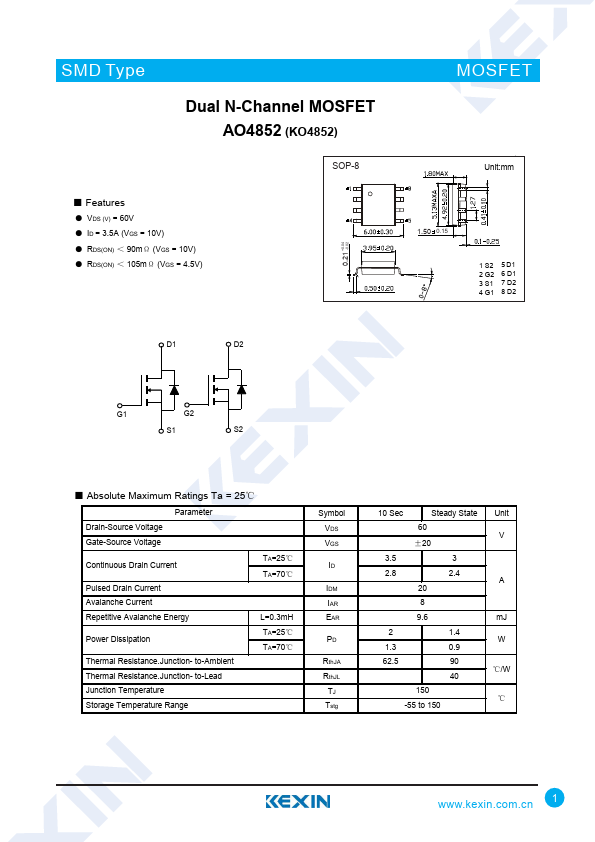

AO4852
AO4852 is Dual N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 60V
- ID = 3.5A (VGS = 10V)
- RDS(ON) ＜ 90mΩ (VGS = 10V)
- RDS(ON) ＜ 105mΩ (VGS = 4.5V)
+0.04 0.21 -0.02
MOSFET
Unit:mm
1.50 0.15
1 S2 2 G2 3 S1 4 G1
5 D1 6 D1 7 D2 8 D2
D1
D2
G1
G2
S1
S2
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy
Power Dissipation
Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
L=0.3m H TA=25℃ TA=70℃
Symbol VDS VGS
IDM IAR EAR
Rth JA Rth JL
TJ Tstg
10 Sec
Steady...
