AO4852 - 60V Dual N-Channel MOSFET

VBsemi

Key Features

TrenchFET® power MOSFET.
100 % Rg and UIS tested D1 D2 G1 G2 S1 S2 N-Channel MOSFET N-Channel MOSFET.

AO4852 60v dual n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	AO4852
Manufacturer	VBsemi
File Size	234.92 KB
Description	60V Dual N-Channel MOSFET
Datasheet	AO4852 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4852	60V Dual N-Channel MOSFET	Alpha & Omega Semiconductors
AO4852	Dual N-Channel MOSFET	Kexin
AO4852	N-Channel MOSFET	FreesCale
AO4852-HF	Dual N-Channel MOSFET	Kexin
AO4850	Dual N-Channel MOSFET	Alpha & Omega Semiconductors

Other Datasheets by VBsemi

Part Number	Description
AO4850	80V N-Channel MOSFET
AO4800	Dual N-Channel 30V MOSFET
AO4801	Dual P-Channel 30V MOSFET
AO4805	Dual P-Channel MOSFET
AO4812	Dual N-Channel 30V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

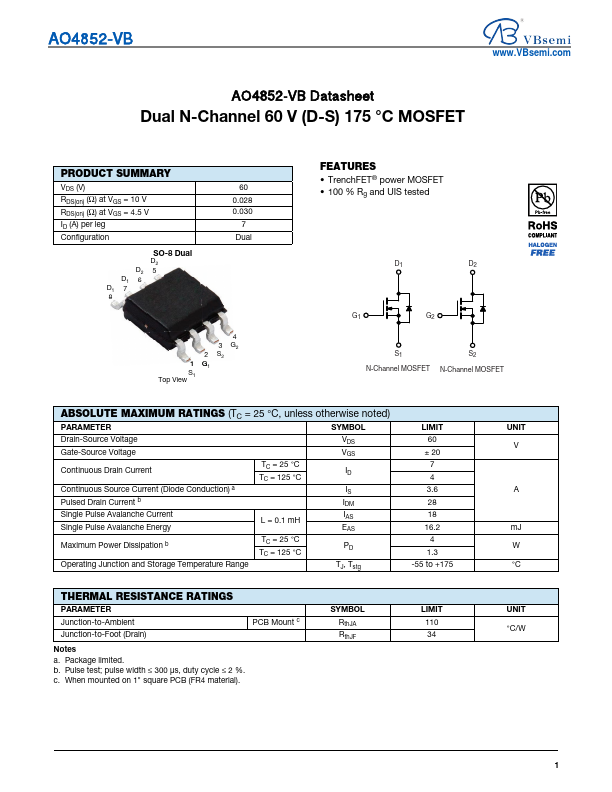

AO4852-VB www.VBsemi.com AO4852-VB Datasheet Dual N-Channel 60 V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) at VGS = 10 V RDS(on) (Ω) at VGS = 4.5 V ID (A) per leg Configuration SO-8 Dual D2 D2 5 D1 6 D1 7 8 60 0.028 0.030 7 Dual 4 3 G2 2 S2 1 G1 S1 Top View FEATURES • TrenchFET® power MOSFET • 100 % Rg and UIS tested D1 D2 G1 G2 S1 S2 N-Channel MOSFET N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Source Current (Diode Conduction) a Pulsed Drain Current b Single Pulse Avalanche Current Single Pulse Avalanche Energy Maximum Power Dissipation b Operating Junction and Storage Temperature Range TC = 25 °C TC = 125 °C L = 0.
