AO6420

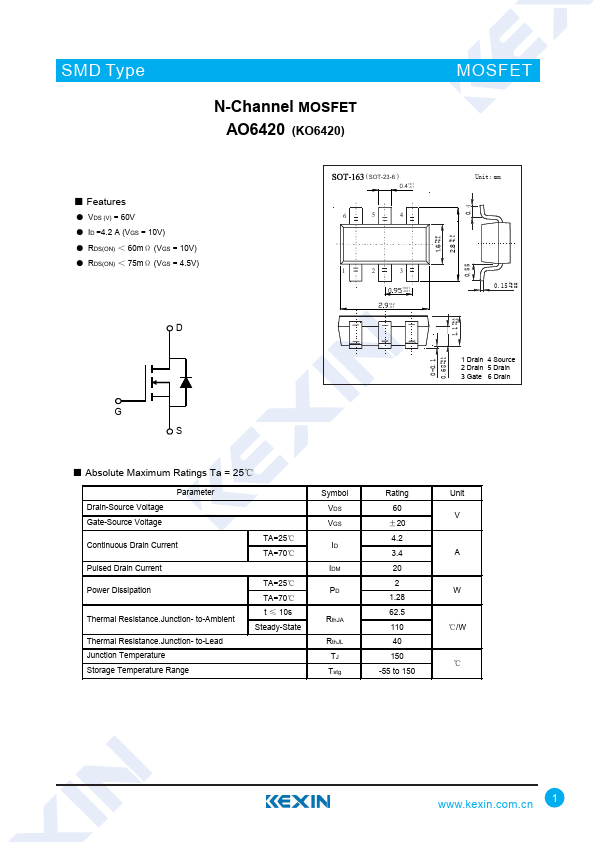

AO6420 is N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 60V
- ID =4.2 A (VGS = 10V)
- RDS(ON) ＜ 60mΩ (VGS = 10V)
- RDS(ON) ＜ 75mΩ (VGS = 4.5V)
( SOT-23-6 ) 0.4+0.1
-0.1
Unit: mm
+0.2 1.6 -0.1
+0.2 2.8 -0.1
+0.01 -0.01 +0.2 -0.1
0-0.1 +0.1 0.68
-0.1
+0.1 1.1 -0.1
0.15 +0.02 -0.02
1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current
Power Dissipation
Thermal Resistance.Junction- to-Ambient
Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS ID
IDM PD
Rth JA Rth JL
TJ Tstg
Rating...
