AO6424 Datasheet (Kexin Semiconductor)

Part AO6424
Description N-Channel MOSFET
Category MOSFET
Manufacturer Kexin Semiconductor
Size 1.39 MB
AO6424 Datasheet (PDF) Download
Pricing from 0.163 EUR, available from TME and DigiKey.
🏠
Kexin Semiconductor

AO6424 Overview

Key Specifications

Package: TSOP
Mount Type: Surface Mount
Max Operating Temp: 150 °C
Min Operating Temp: -55 °C

Key Features

  • VDS (V) = 30V
  • ID =5 A (VGS = 10V)
  • RDS(ON) ＜ 31mΩ (VGS = 10V)
  • 0.1 D 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain G S

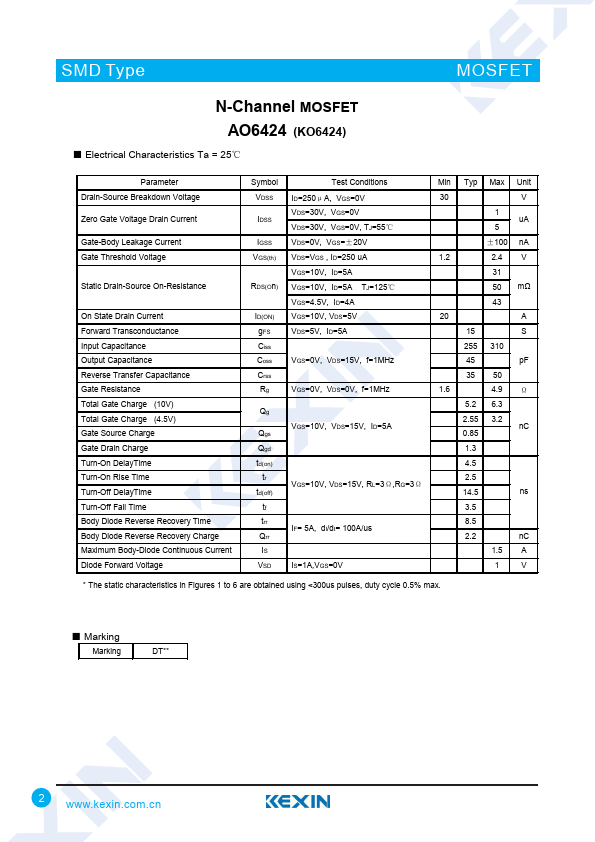

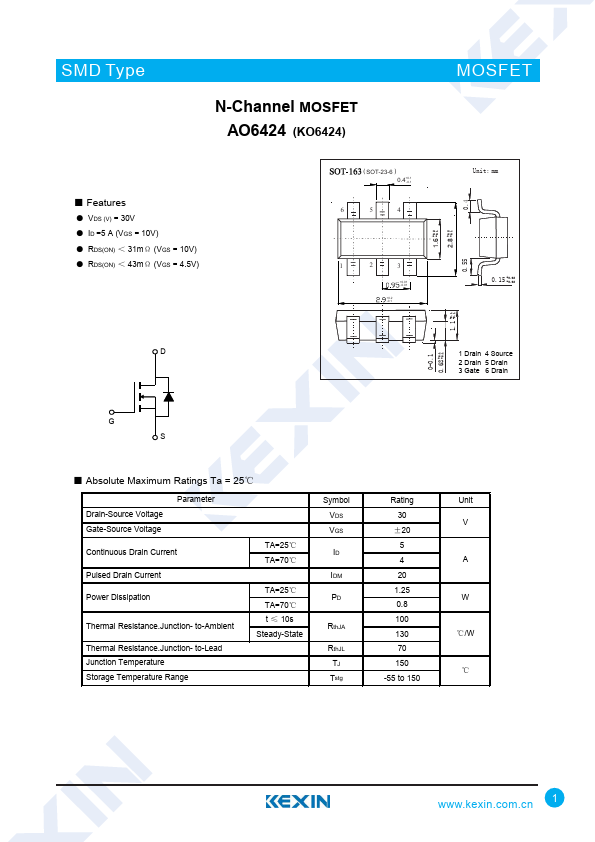

AO6424 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
TME 1834 5+ : 0.163 EUR
25+ : 0.119 EUR
100+ : 0.105 EUR
500+ : 0.094 EUR		 View Offer
TME 1834 5+ : 0.162 USD
25+ : 0.119 USD
100+ : 0.105 USD
500+ : 0.094 USD		 View Offer
