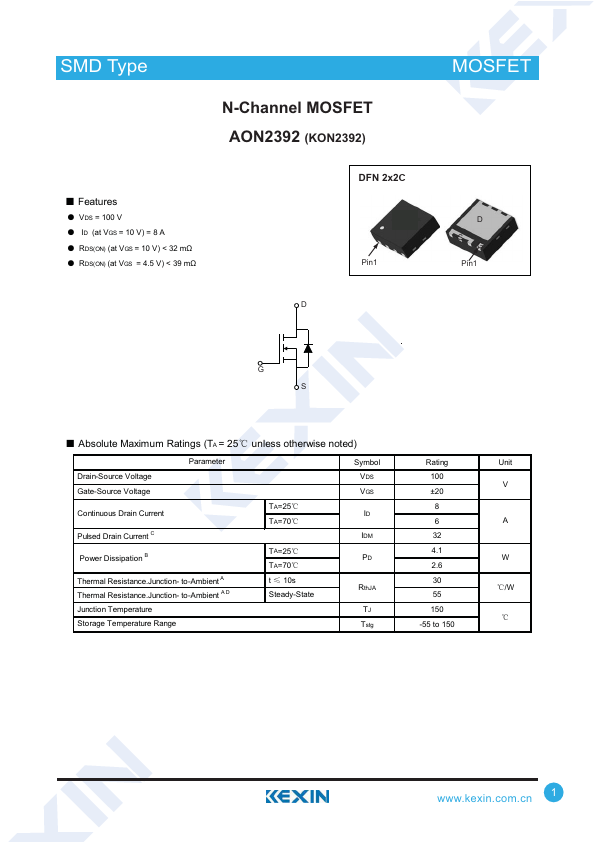

SMD Type
N-Channel MOSFET AON2392 (KON2392)
Ƶ Features
ƽ VDS = 100 V ƽ ID (at VGS = 10 V) = 8 A ƽ RDS(ON) (at VGS = 10 V) < 32 mȍ ƽ RDS(ON) (at VGS = 4.5 V) < 39 mȍ
DFN 2x2C
Pin1
D
MOSFET
D S
G Pin1
G S
Ƶ Absolute Maximum Ratings (TA = 25ć unless otherwise noted)
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current C
Power Dissipation B
Thermal Resistance.Junction- to-Ambient A Thermal Resistance.Junction- to-Ambient A D Junction Temperature Storage Temperature Range
TA=25ć TA=70ć
TA=25ć TA=70ć t İ 10s Steady-State
Symbol VDS VGS ID IDM PD
RthJA TJ Tstg
Rating 100 ±20 8 6 32 4.1 2.6 30 55 150
-55 to 150
Unit V A
W ć/W
ć
