APM9435K - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-4.6 A (VGS =-10V).
  • RDS(ON) ＜ 52mΩ (VGS =-10V).
  • RDS(ON) ＜ 80mΩ (VGS =-4.5V) 4 G S SS D DDD 5 1 6 2 7 8 3 +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current @ VGS=-10V (Note.1) Pulsed Drain Current @ VGS=-10V (Note.1) Power Dissipation Ta=25°C Ta=100°C Thermal Res.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
APM9435K N-Channel MOSFET Anpec Electronics Coropration
APM9435KC-TRL P-Channel 30V MOSFET VBsemi
APM9435 P-Channel MOSFET Anpec Electronics Coropration
APM9435 P-Channel MOSFET ZhenYang
APM9430 N-Channel MOSFET ANPEC

Other Datasheets by Kexin Semiconductor

Part Number Description
APM9435KC P-Channel MOSFET
APM2701CG Dual-Channel MOSFET
APM4015PU P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

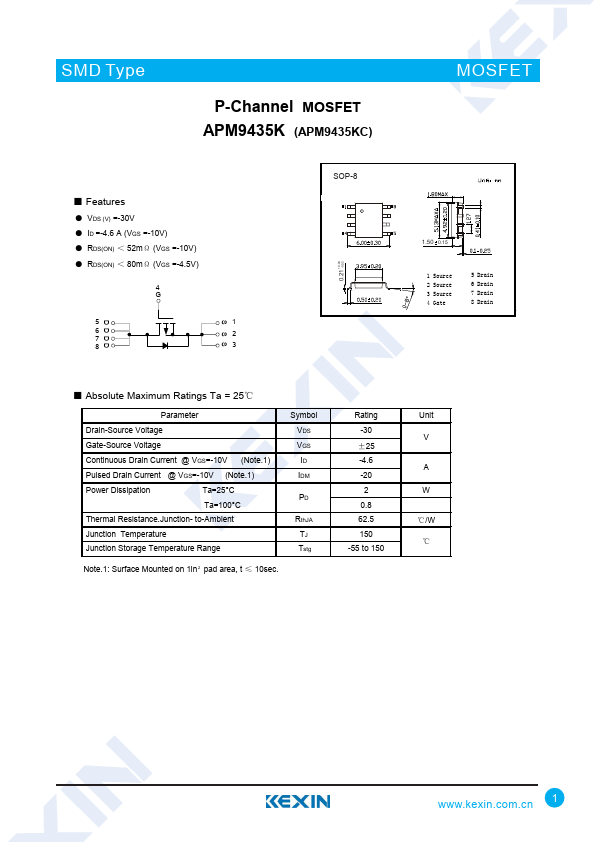

SMD Type P-Channel MOSFET APM9435K (APM9435KC) ■ Features ● VDS (V) =-30V ● ID =-4.6 A (VGS =-10V) ● RDS(ON) ＜ 52mΩ (VGS =-10V) ● RDS(ON) ＜ 80mΩ (VGS =-4.5V) 4 G S SS D DDD 5 1 6 2 7 8 3 +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current @ VGS=-10V (Note.1) Pulsed Drain Current @ VGS=-10V (Note.1) Power Dissipation Ta=25°C Ta=100°C Thermal Resistance.Junction- to-Ambient Junction Temperature Junction Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ Tstg Note.1: Surface Mounted on 1in 2 pad area, t ≤ 10sec. Rating -30 ±25 -4.6 -20 2 0.8 62.5 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.
