Kexin Electronics BAL99W
High-speed diode
| Part No. | BAL99W |
|---|---|
| Datasheet | BAL99W Download |
| Manufacturer | Kexin Electronics |
| Description | High-speed diode |
| Buy | Stock & Price |

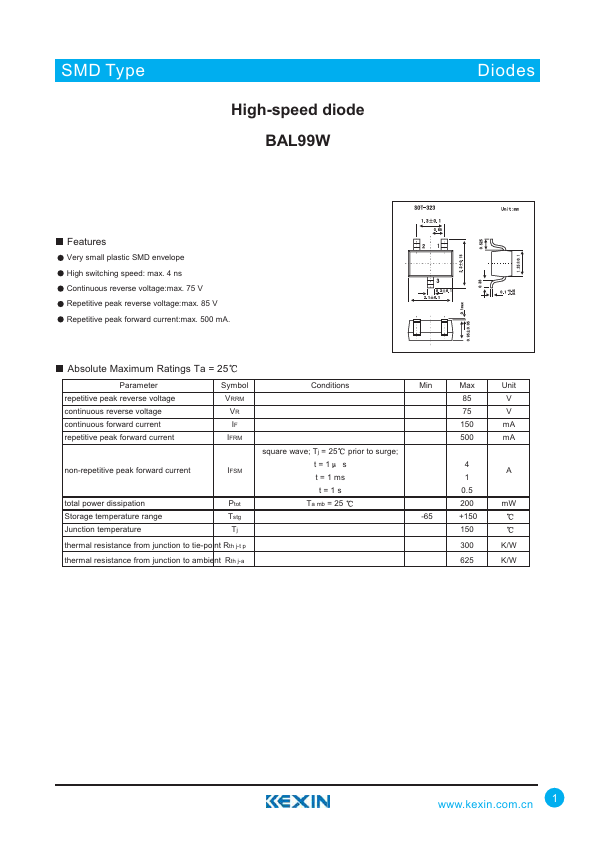

FEATURES
Very small plastic SMD envelope High switching speed: max. 4 ns Continuous reverse voltage:max. 75 V Repetitive peak reverse voltage:max. 85 V Repetitive peak forward current:max. 500 mA.ABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter repetitive peak reverse voltage continuous reverse voltage continuous forward current repetitive peak forward current non-repetitive peak forward current total power dissipation Storage temperature range Junction temperature Symbol Conditions Min VRRM VR IF IFRM square wave; Tj = 25 prior to surge; t=1 s IFSM t = 1 ms t=1s Ptot Ta mb = 25 Tstg -65 Tj thermal resistance from junction to tie-point Rth j-t p thermal resistance from junction to ambient Rth j-a Max Unit 85 V 75 V 150 mA 500 mA 4 A 1 0.5 200 mW +150 150 300 K/W 625 K/W 1 SMD Type BAL99W DiodesELECTRICAL CHARACTERISTICS

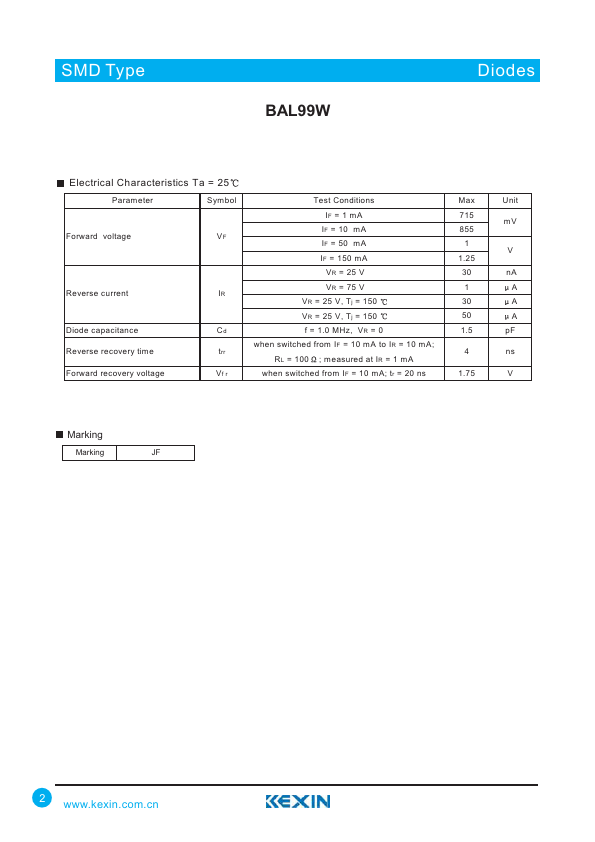

Ta = 25 P aram eter Forward voltage Reverse current Diode capacitance Reverse recovery time Forward recovery voltage Symbol VF IR Cd trr Vf r Test Conditions IF = 1 mA IF =...
