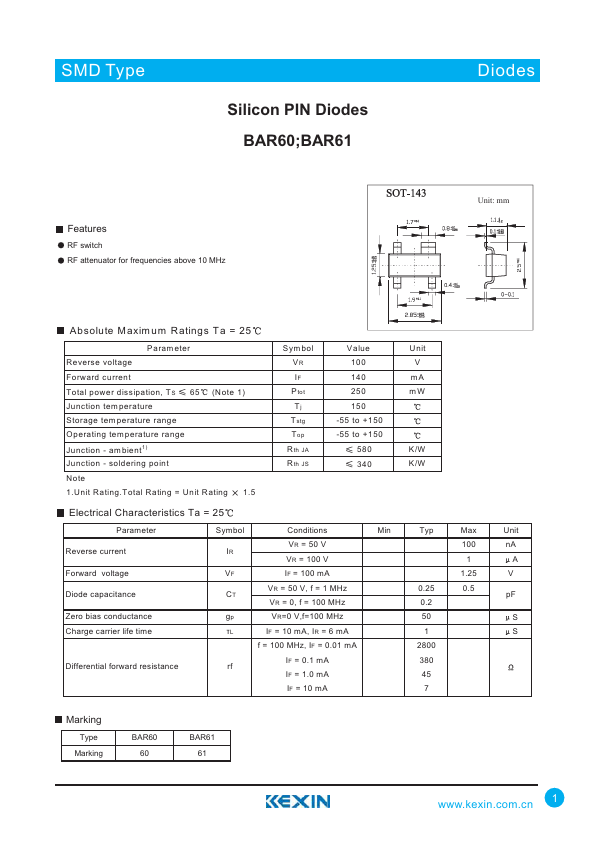

SMD Type Silicon PIN Diodes BAR60;BAR61 Features RF switch RF attenuator for frequencies above 10 MHz Diodes Unit: mm Absolute Maxim um Ratings Ta = 25 Param eter Reverse voltage Forward current Total power dissipation, TS 65 (Note 1) Junction tem perature Storage tem perature range Operating tem perature range Junction - am bient1) Junction - soldering point Note 1.Unit Rating.Total Rating = Unit Rating 1.5 Sym bol VR IF P tot Tj T stg Top Rth JA Rth JS V a lu e 100 140 250 150 -55 to +150 -55 to +150 580 340 Unit V mA mW K/W K/W Electrical Characteristics Ta = 25 Parameter Reverse current Forward voltage Diode capacitance Zero bias conductance Charge carrier life time Differential...
