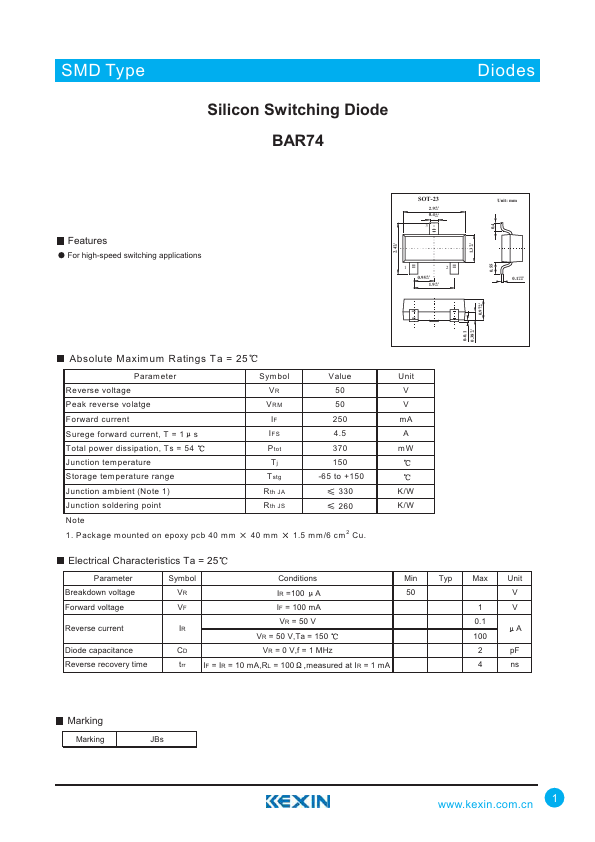

FEATURES
For high-speed switching applications +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 Absolute Maxim um Ratings Ta = 25 P aram eter Reverse voltage Peak reverse volatge Forward current Surege forward current, T = 1 s Total power dissipation, Ts = 54 Junction temperature Storage temperature range Junction ambient (Note 1) Junction soldering point Note 1. Package mounted on epoxy pcb 40 mm Sym bol VR VRM IF IFS P tot Tj Tstg Rth JA Rth JS Value 50 50 250 4.5 370 150 -65 to +150 330 260 40 mm 1.5 mm/6 cm2 Cu. Unit V V mA A mW K/W K/W 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Symbol Conditions Min Typ Max Unit Breakdown voltage VR IR =100 A 50 V Forward voltage VF IF = 100 mA 1 V Reverse current IR VR = 50 V VR = 50 V,Ta = 150 0.1 A 100 Diode capacitance CD VR = 0 V,f = 1 MHz 2 pF Reverse recovery time trr IF = IR = 10 mA,RL = 100 ,meas...
