Zetex BAR74
SOT23 HIGH SPEED SWITCHING DIODES
| Part No. | BAR74 |
|---|---|
| Datasheet | BAR74 Download |
| Manufacturer |  Zetex |
| Description | SOT23 HIGH SPEED SWITCHING DIODES |
| Buy | Stock & Price |
ABSOLUTE MAXIMUM RATINGS
. PARAMETER Continuous Reverse Voltage Average Output Rectified Current (tav = 10ms) Continuous Forward Current Peak Forward Current ( t = 15ms) Forward Surge Current (t = 1µs) Operating and Storage Temperature Range Power Dissipation at Tamb =25°C SYMBOL VR Io IF IFM IFS Tj:Tstg Ptot VALUE 50 100 150 200 1 -55 to +150 330 UNIT V mA mA mA A °C mWELECTRICAL CHARACTERISTICS

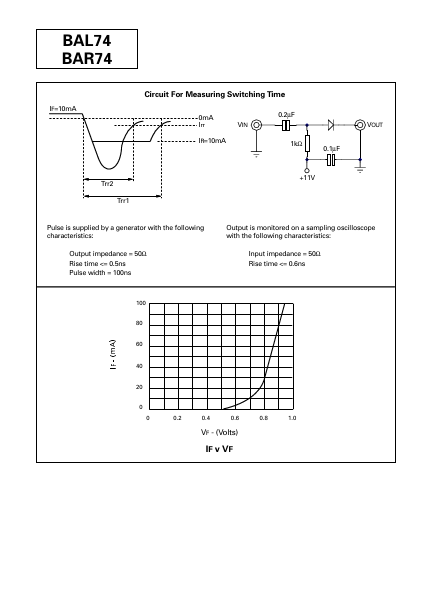

(at Tamb = 25°C unless otherwise stated). PARAMETER SYMBOL MIN. TYP. MAX. UNIT CONDITIONS. Breakdown Voltage VBR 51 Forward Voltage VF Reverse current IR V 1.0 V 0.1 µA 100 µA IR = 5µA IF = 100mA VR = 50V VR = 50V, Tamb = 125°C Capacitance Co Reverse Recovery Time trr 2.0 pF 4 ns 2 ns VR = 0 IF = IR = 10mA, IRR = 1mA IF = 10mA, VR = 6V RL = 100Ω Spice parameter data is available upon request for this device PAGE NO BAL74 BAR74 IF=10mA Circuit For Measuring Switching Time 0mA Irr VIN IR=10mA 0.2µF 1kΩ 0.1µF VOUT Trr2 Trr1 +11V Pulse is supplied by a generator with the following characteristics:...
