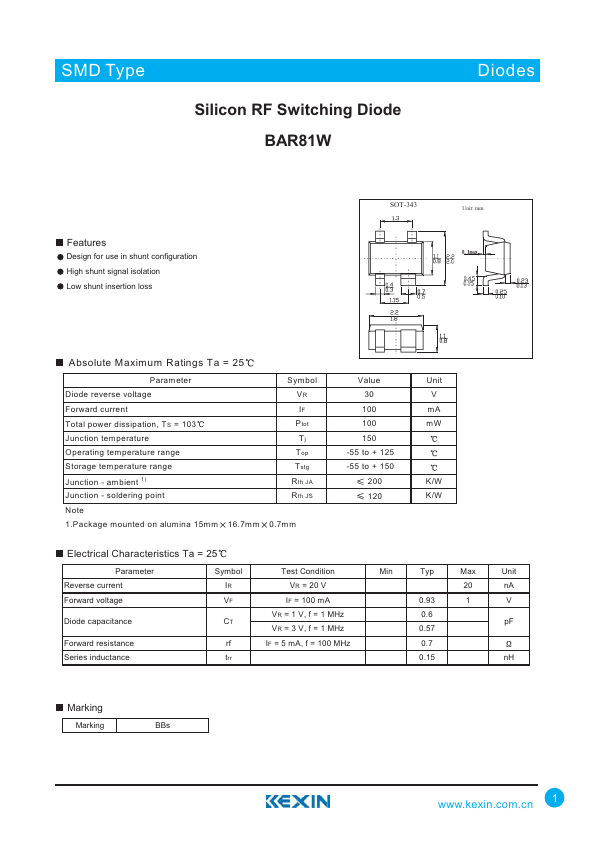

FEATURES
Design for use in shunt configuration High shunt signal isolation Low shunt insertion loss SOT-343 Unit: mm ABSOLUTE MAXIMUM RATINGS
Ta = 25 P aram eter Symbol Diode reverse voltage VR Forward current IF Total power dissipation, TS = 103 Ptot Junction temperature Tj Operating temperature range Top Storage temperature range Junction - ambient 1) Tstg Rth JA Junction - soldering point Rth JS Note 1.Package mounted on alumina 15mm 16.7mm 0.7mm Value 30 100 100 150 -55 to + 125 -55 to + 150 200 120 Unit V mA mW K/W K/W ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Reverse current Forward voltage Symbol IR VF Diode capacitance CT Forward resistance rf Series inductance trr Test Condition VR = 20 V IF = 100 mA VR = 1 V, f = 1 MHz VR = 3 V, f = 1 MHz IF = 5 mA, f = 100 MHz Min Typ Max Unit 20 nA 0.93 1 V 0.6 pF 0.57 0.7 0.15 nH Marking Marking BBs 1
