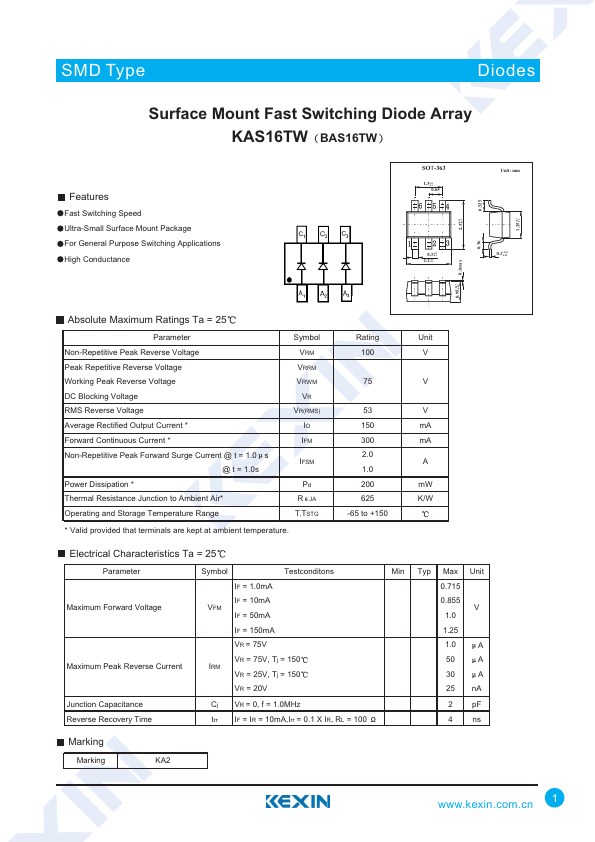

BAS16TW Datasheet PDF

FEATURES

Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching

APPLICATIONS

High Conductance SOT-363 1.3+0.1 -0.1 0.65 0.3+0.1 -0.1 2.1+0.1 -0.1 +0.15 2.3 -0.15 0.36 0.525 Unit: mm 0.1+0.05 -0.02 +0.1 1.25 -0.1 0.1max +0.05 0.95 -0.05

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Symbol Rating Unit Non-Repetitive Peak Reverse Voltage VRM 100 V Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 75 V DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 53 V Average Rectified Output Current * IO 150 mA Forward Continuous Current * IFM 300 mA Non-Repetitive Peak Forward Surge Current @ t = 1.0 s 2.0 IFSM A @ t = 1.0s 1.0 Power Dissipation * Pd 200 mW Thermal Resistance Junction to Ambient Air* R JA 625 K/W Operating and Storage Temperature Range T,TSTG -65 to +150 * Valid provided that terminals are kept at ambient temperature.

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Maximum Forward Voltage Maximum Peak Reverse Current Symbol Testconditons...
