Kexin Electronics BAS29
General Purpose Controlled Avalanche Diodes
| Part No. | BAS29 |
|---|---|
| Datasheet | BAS29 Download |
| Manufacturer | Kexin Electronics |
| Description | General Purpose Controlled Avalanche Diodes |
| Buy | Stock & Price |
FEATURES

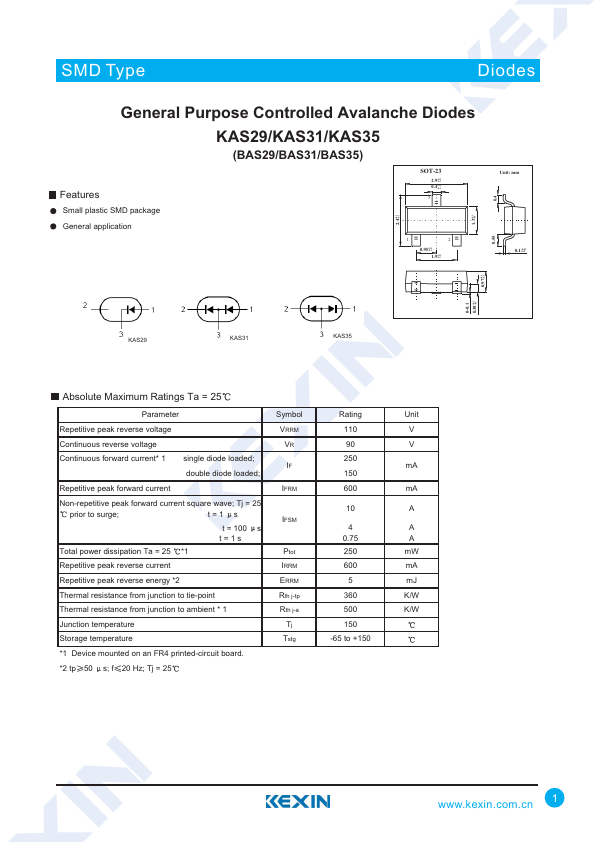

Small plastic SMD package General application KAS29/KAS31/KAS35 (BAS29/BAS31/BAS35) SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 KAS29 KAS31 KAS35 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collectorABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Symbol Rating Unit Repetitive peak reverse voltage VRRM 110 V Continuous reverse voltage VR 90 V Continuous forward current* 1 single diode loaded; IF double diode loaded; 250 mA 150 Repetitive peak forward current IFRM 600 mA Non-repetitive peak forward current square wave; Tj = 25 10 A prior to surge; t=1 s IFSM t = 100 s 4 A t=1s 0.75 A Total power dissipation Ta = 25 *1 Ptot 250 mW Repetitive peak reverse current IRRM 600 mA Repetitive peak reverse energy *2 ERRM 5 mJ Thermal resistance from junction to tie-point Rth j-tp 360 K/W Thermal resistance from junction to ambient * 1 Rth j-a 500 K/W Junction temperature Tj 150 Storage temperature Ts...
