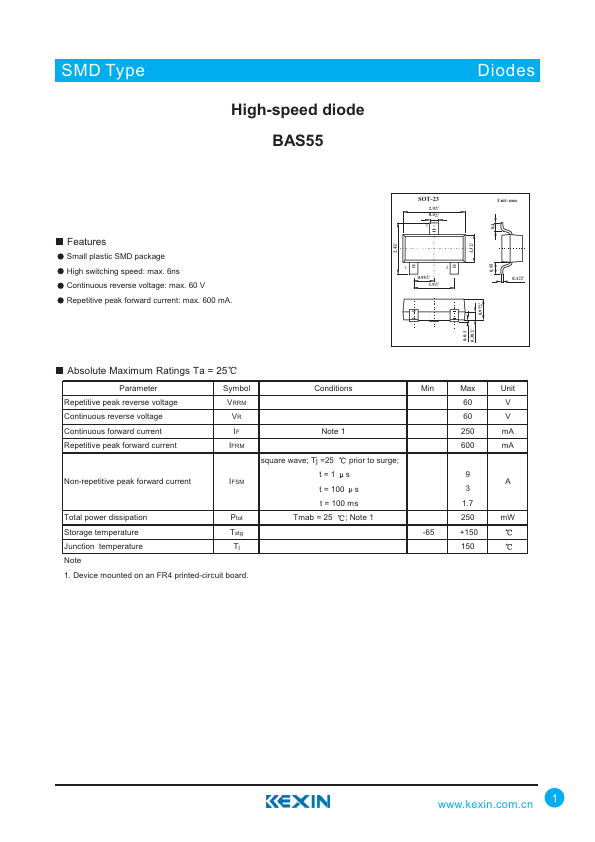

BAS55 Datasheet PDF

FEATURES

Small plastic SMD package High switching speed: max. 6ns Continuous reverse voltage: max. 60 V Repetitive peak forward current: max. 600 mA. +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Symbol Conditions Min Repetitive peak reverse voltage VRRM Continuous reverse voltage VR Continuous forward current IF Note 1 Repetitive peak forward current IFRM square wave; Tj =25 prior to surge; Non-repetitive peak forward current IFSM t=1 s t = 100 s t = 100 ms Total power dissipation Ptot Tmab = 25 ; Note 1 Storage temperature Tstg -65 Junction temperature Tj Note 1. Device mounted on an FR4 printed-circuit board. Max Unit 60 V 60 V 250 mA 600 mA 9 A 3 1.7 250 mW +150 150 1 SMD Type High-speed diode BAS55 Diodes

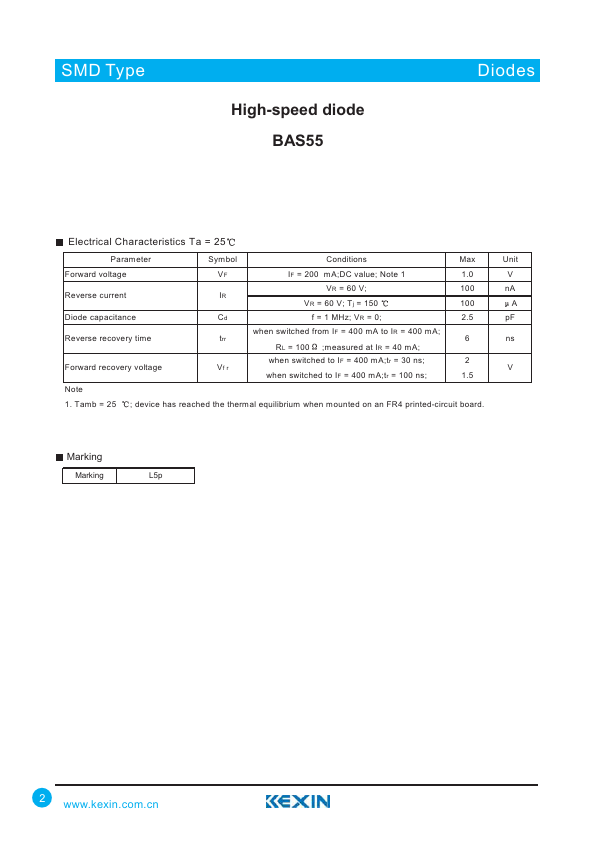

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Symbol Conditions Max Unit Forward voltage VF...
