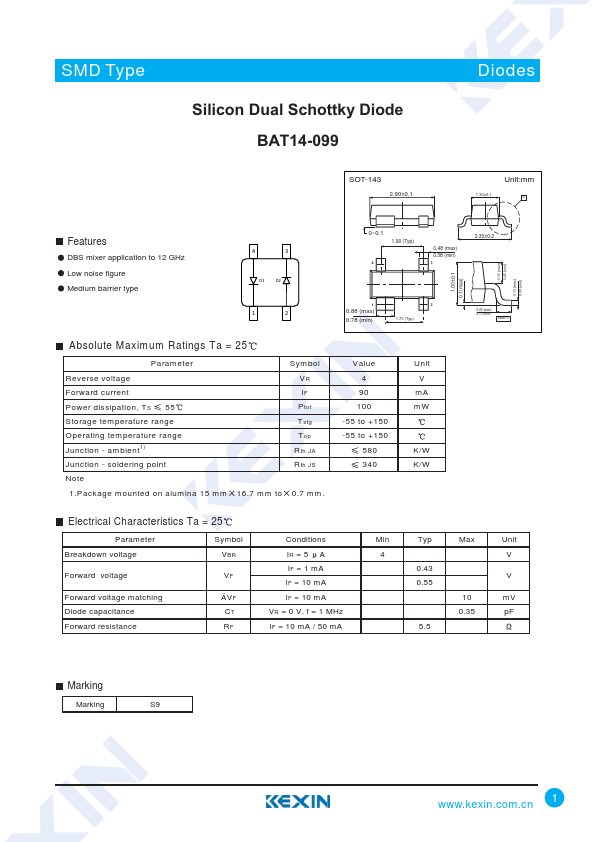

Datasheet Summary
SMD Type
Silicon Dual Schottky Diode BAT14-099
SOT-143
2.90±0.1
Diodes
1.30±0.1
Unit:mm
1.00±0.1 0.1(max)
0.55 (max) 0.45 (min) 0.15 (max) 0.09 (min)
Features
DBS mixer application to 12 GHz Low noise figure Medium barrier type
D1 D2
0~0.1 1.90 (Typ)
0.48 (max) 0.38 (min)
2.30±0.2
0.88 (max)
0.78 (min)
2 1.70 (Typ)
0.45 (max) 0.15 (min) detail X
Absolute Maxim um Ratings Ta = 25
P aram eter Reverse voltage Forward current Power dissipation, TS 55 Storage temperature range Operating temperature range Junction
- am bient1) Junction
- soldering point Note 1.Package mounted on alumina 15 mm
Sym bol VR IF P tot Tstg Top
Rth JA Rth JS
16.7 mm to 0.7...
