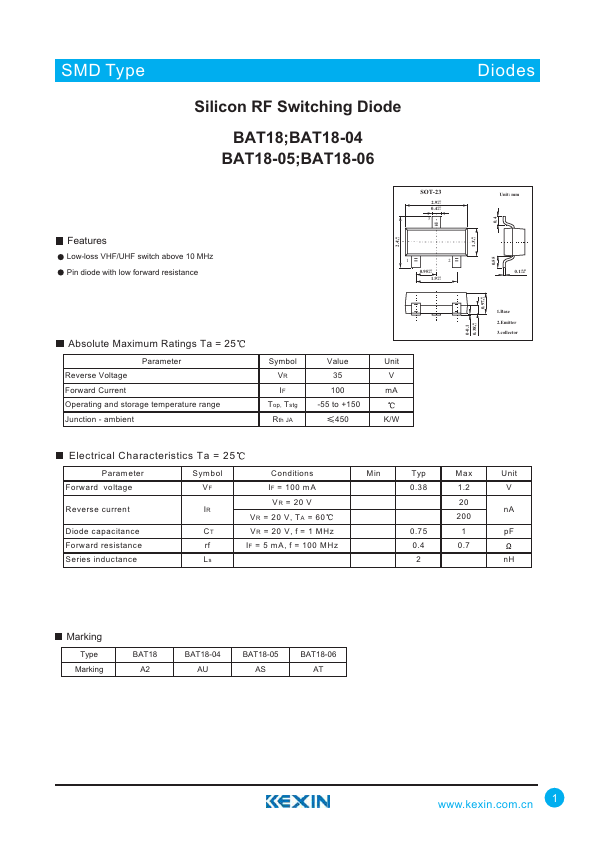

FEATURES
Low-loss VHF/UHF switch above 10 MHz Pin diode with low forward resistance +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 ABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Reverse Voltage Forward Current Operating and storage temperature range Junction - ambient Symbol VR IF Top, Tstg Rth JA Value 35 100 -55 to +150 450 Unit V mA K/W 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector ELECTRICAL CHARACTERISTICS
Ta = 25 P aram eter Forward voltage Reverse current Diode capacitance Forward resistance Series inductance Symbol Conditions M in Typ Max Unit VF IF = 100 mA 0.38 1.2 V VR = 20 V IR VR = 20 V, TA = 60 20 nA 200 CT VR = 20 V, f = 1 MHz 0.75 1 pF rf IF = 5 mA, f = 100 MHz 0.4 0.7 Ls 2 nH Marking Type Marking BAT18 A2 BAT18-04 AU BAT18-05 AS BAT18-06 AT 1
