Datasheet Details
| Part number | BAT46WS |
|---|---|
| Manufacturer | Kexin Semiconductor |
| File Size | 312.78 KB |
| Description | Schottky Diodes |
| Datasheet | BAT46WS-Kexin.pdf |
|
|

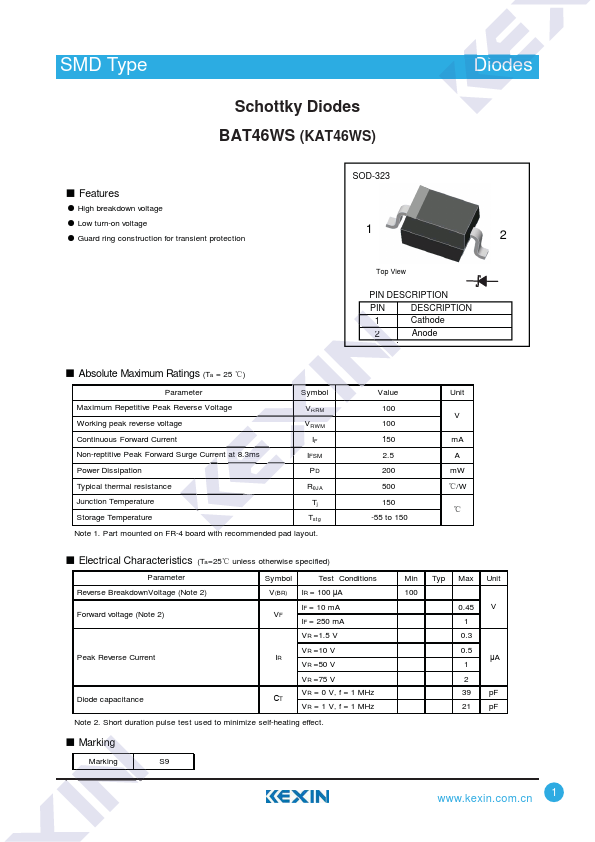

Overview: SMD Type Schottky Diodes BAT46WS (KAT46WS) Diodes Ƶ.
| Part number | BAT46WS |
|---|---|
| Manufacturer | Kexin Semiconductor |
| File Size | 312.78 KB |
| Description | Schottky Diodes |
| Datasheet | BAT46WS-Kexin.pdf |
|
|
|
PIN DESCRIPTION 1 Cathode 2 Anode Ƶ Absolute Maximum Ratings (Ta = 25 ć) Parameter Symbol Maximum Repetitive Peak Reverse Voltage VRRM Working peak reverse voltage VRWM Continuous Forward Current IF Non-reptitive Peak Forward Surge Current at 8.3ms IFSM Power Dissipation PD Typical thermal resistance Junction Temperature Storage Temperature RɽJA Tj Tstg Note 1.
Part mounted on FR-4 board with remended pad layout.
Value 100 100 150 2.5 200 500 150 -55 to 150 Unit V mA A mW ć/W ć Ƶ Electrical Characteristics (Ta=25ć unless otherwise specified) Parameter Reverse BreakdownVoltage (Note 2) Forward voltage (Note 2) Peak Reverse Current Diode capacitance Symbol Test Conditions V(BR) IR = 100 μA IF = 10 mA VF IF = 250 mA VR =1.5 V VR =10 V IR VR =50 V VR =75 V VR = 0 V, f = 1 MHz &7 VR = 1 V, f = 1 MHz Note 2.
